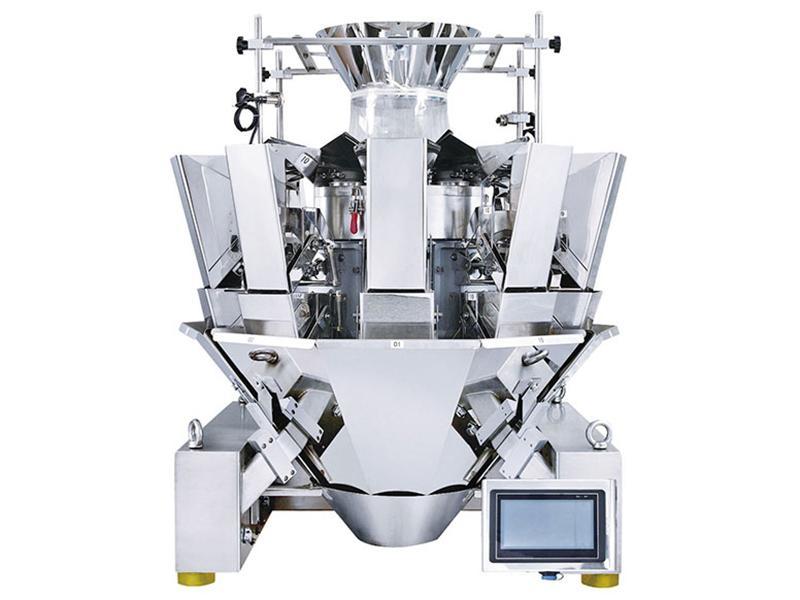

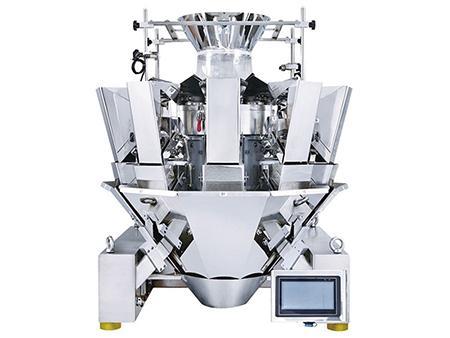

- Standard Multihead Weigher for free flow products (Optional 10 heads, 12 heads, 14 heads; 10-1000g,10-1500g,100-3000g; 1.6L,2.5L,5L)

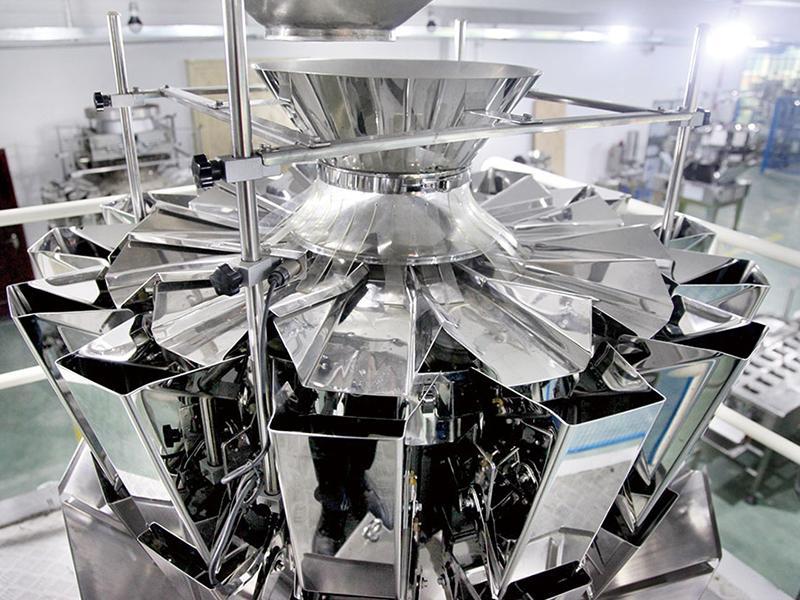

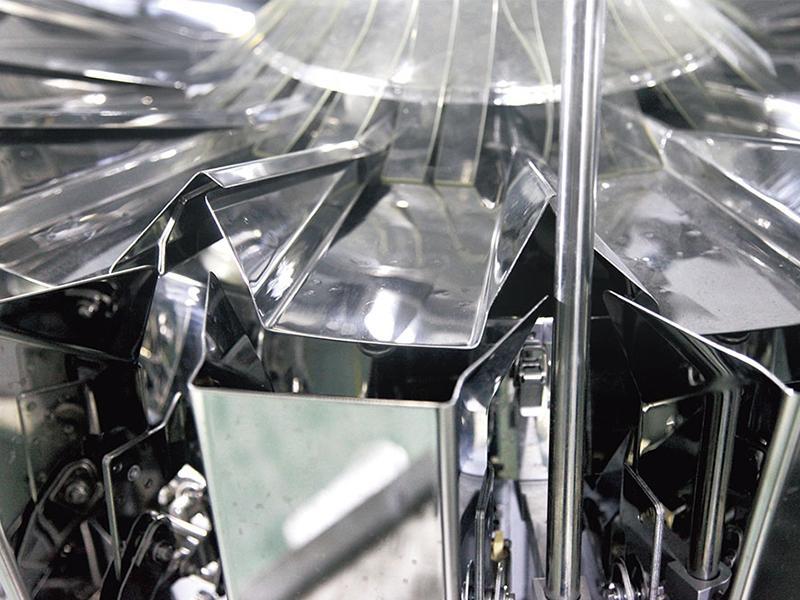

This series of standard multihead weigher for free flow products is one of our entry level offerings. The machine's touchscreen control panel can store up to 100 sets of parameters to meet the different weighing requirements of various materials. The control panel is also outfitted with a HELP menu that you can reference for assistance with machine operation. The vibration frequency of each feeding lane can be individually adjusted for more even spreading. This equipment is particularly suited for dosing and weighing granules and irregularly shaped products like various foods.
Model | JW-A10 | JW-A12 | JW-A14 | JW-AM10 | JW-AM14 |
Product code | A10-1-1 | A12-1-1 | A14-1-1 | AM10-1-1 | AM14-1-1 |
Single weighing range | 10-1000g | 10-1500g | 10-1500g | 100-3000g | 100-3000g |
Weighing accuracy class | X(0.5) | X(0.5) | X(0.5) | X(1) | X(1) |
Maximum weighing speed (Pack/Min) | 65P/M | 65P/M | 120P/M | 50P/M | 80P/M |
Bucket number | 10 | 12 | 14 | 10 | 14 |
Bucket volume | 1.6/2.5L | 1.6/2.5L | 1.6/2.5L | 5L | 5L |
Operator interface | 7" Touchscreen | ||||
Motor | Step motor | ||||
Power supply | 220V/1000W/ 50/60Hz /10A | 220V/1200W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /10A | 220V/1500W/50/60HZ/10A | 220V/1500W/50/60HZ/12A |
Machine dimension (L×W×H) | 1620 × 1100 × 1110mm | 1660 × 1100 × 1130mm | 1700 × 1100 × 1265mm | 1950 × 1280 × 1690mm | 2195 × 1380 × 1810mm |
Machine weight (kg) | 380kg | 430kg | 490kg | 600kg | 650kg |

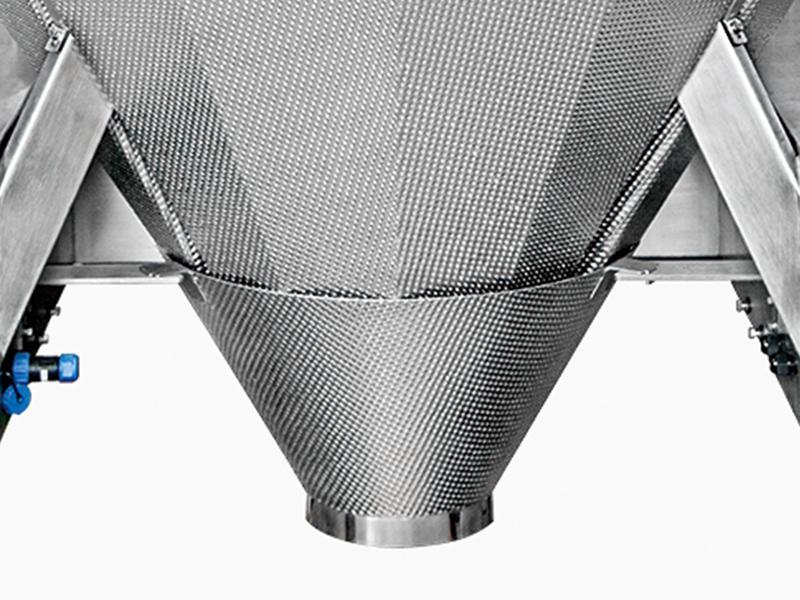

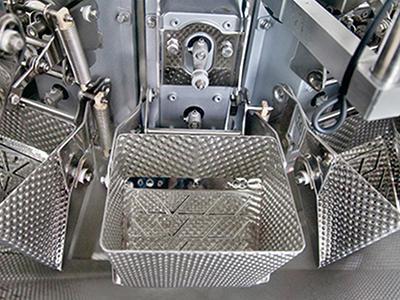

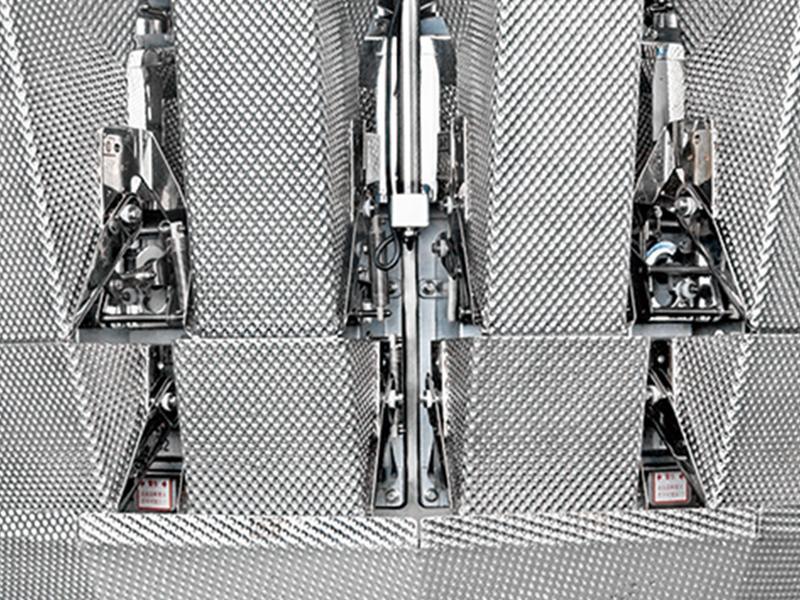

Dimple plate/Timing hopper/Label printer/Reject device for check weigher
