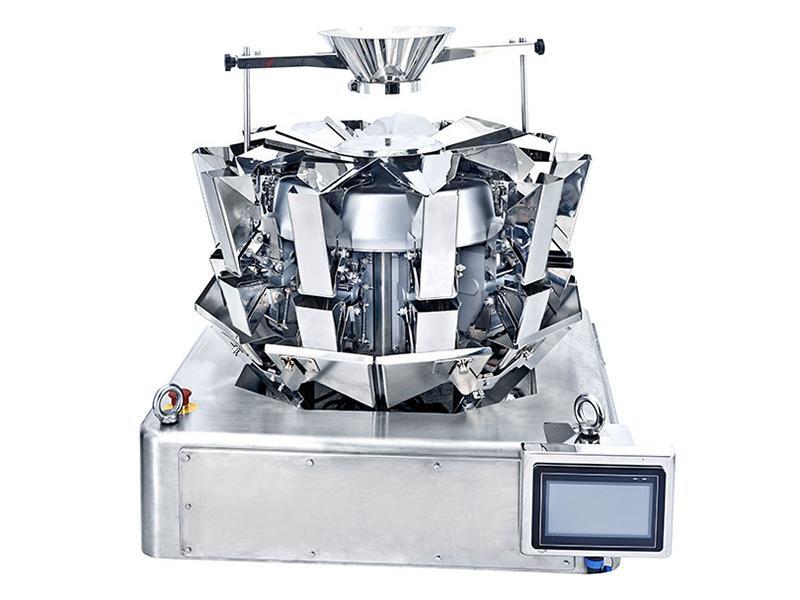

High Precision Compact Weigher for free flow products (Optional 10 heads, 14 heads; 5-60g, 5-100g, 5-200g; 0.3L, 0.5L)
High Precision Compact Weigher for free flow products (Optional 10 heads, 14 heads; 5-60g, 5-100g, 5-200g; 0.3L, 0.5L)
This series of high precision compact weigher is designed to weigh products smaller than 10g. Therefore, the weigher is suitable for processing small granules or lightweight products that require high precision such as teas, seeds, seasonings, coffee beans, cocoa beans, and more. This series of high precision compact weigher comes with a 0.3L or 0.5L bucket volume based on your needs. You can also augment your equipment with additional components as needed.
Details

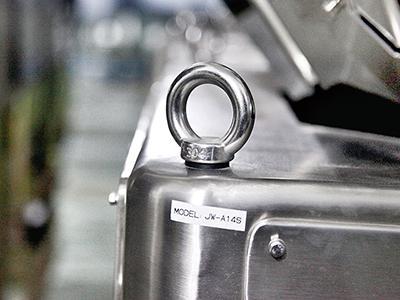

Stainless steel eye bolt
Waterproof covers

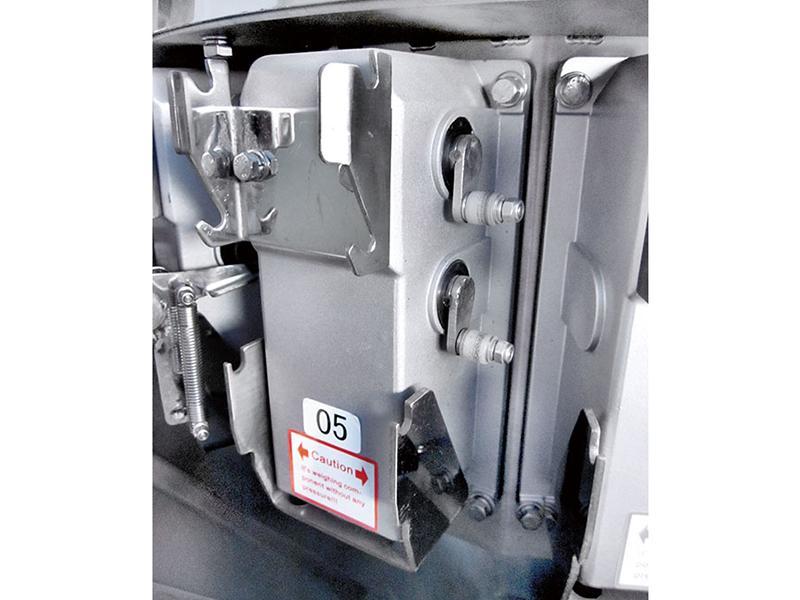

Electric actuator

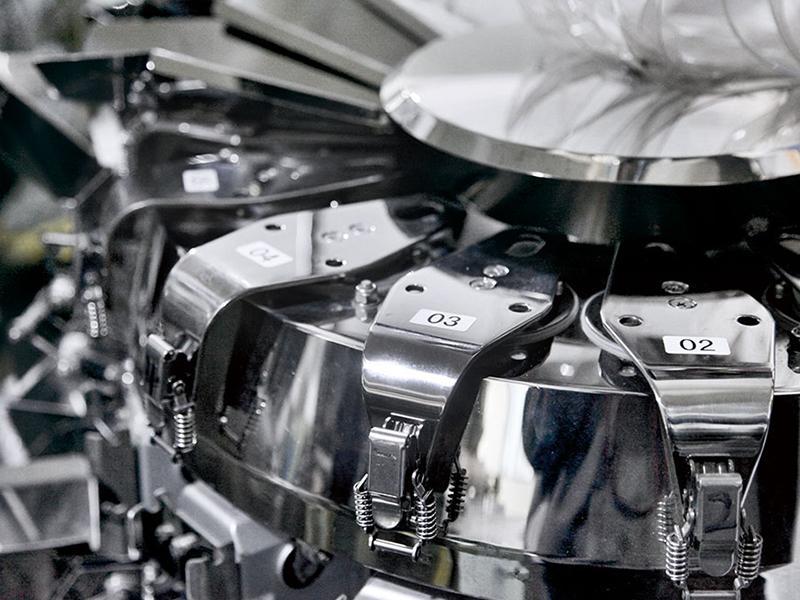

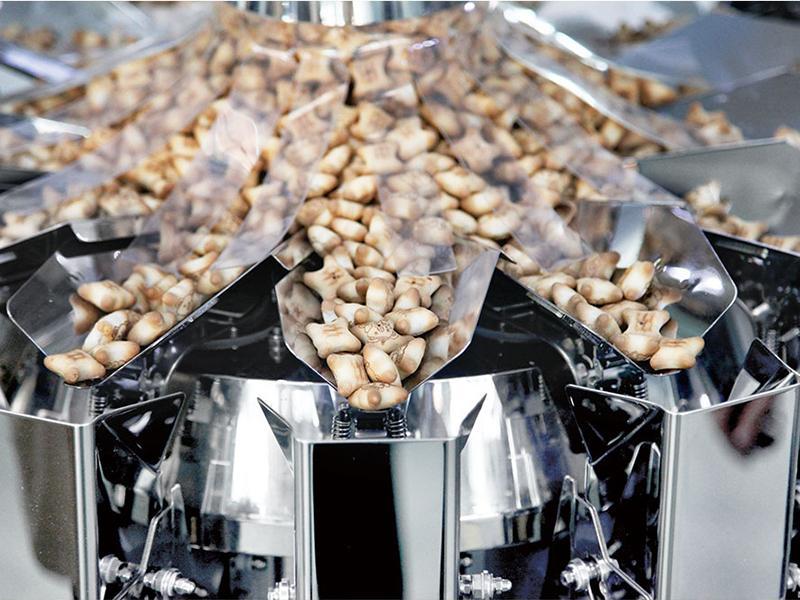

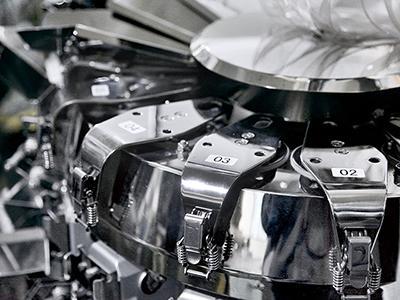

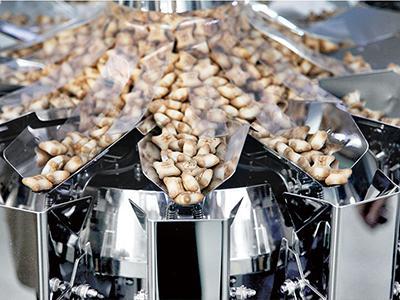

Vibro feeding lane

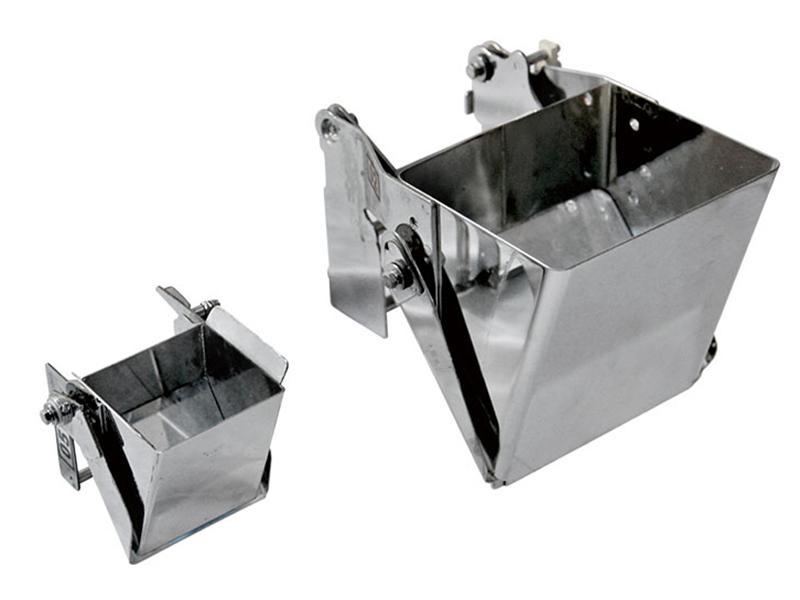

Weighing bucket
Technical parameter for available models
Model
JW-A10
JW-A14
JW-A10
JW-A14
Product code
AS10-1-1
AS14-1-1
AS10-1-2
AS14-1-2
Single weighing range
5-100g
5-200g
5-60g
5-60g
Weighing accuracy class
X(0.5)
X(0.5)
X(0.5)
X(0.5)
Maximum weighing speed (Pack/Min)
60P/M
120P/M
60P/M
120P/M
Bucket number
10
14
10
14
Bucket volume
0.5L
0.3L
Operator interface
7'' Touchscreen
Power supply
220V/900W/ 50/60Hz /8A
220V/1100W/ 50/60Hz /10A
220V/900W/ 50/60Hz /8A
220V/1100W/ 50/60Hz /10A
Machine dimension (L×W×H)
1190 × 970 × 950mm
1190 × 970 × 950mm
1190 × 970 × 950mm
1190 × 970 × 950mm
Machine weight
220kg
240kg
180kg
220kg
Selective assembly equipment
Dimple plate/Timing hopper/Label printer/Reject device for check weigher
