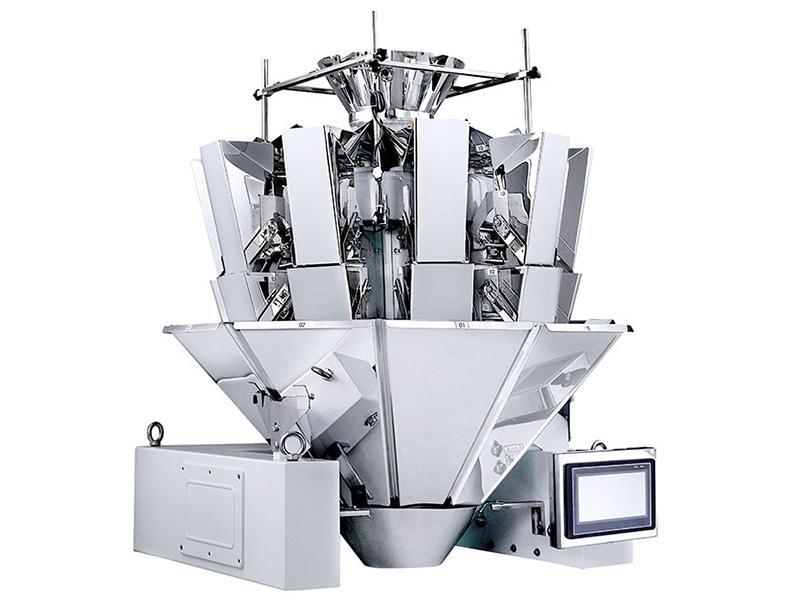

The no-spring weigher is so called because it adopts weighing buckets without springs, making it most suitable for products like granules, small pieces, strips, and irregularly shaped products such as baked goods, pet food, snacks, dried food, etc.
Attention: do not use this equipment to process tiny granules or products with large impact forces.
Details

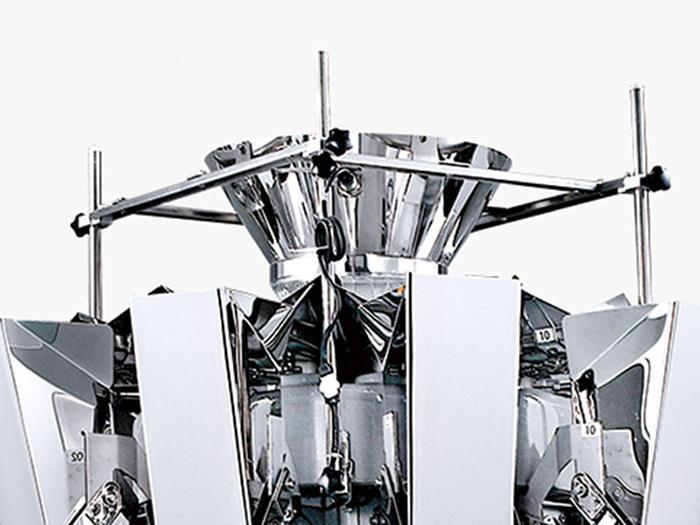

Infeed parts

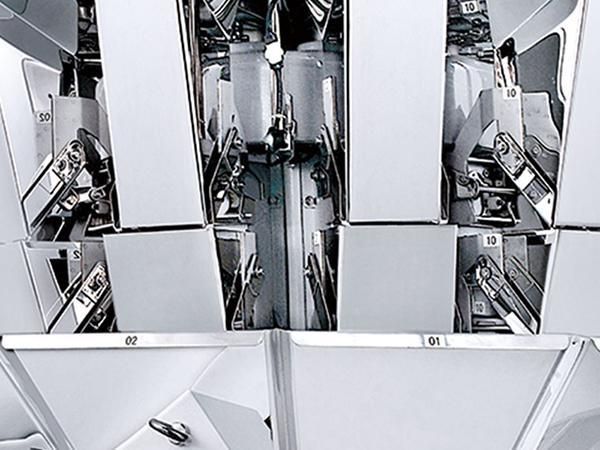

Pool buckets

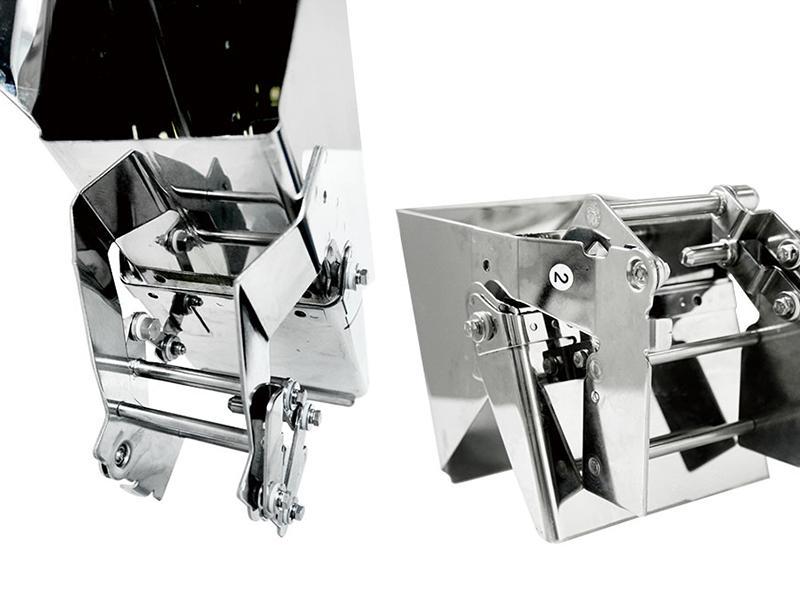

Weighing buckets

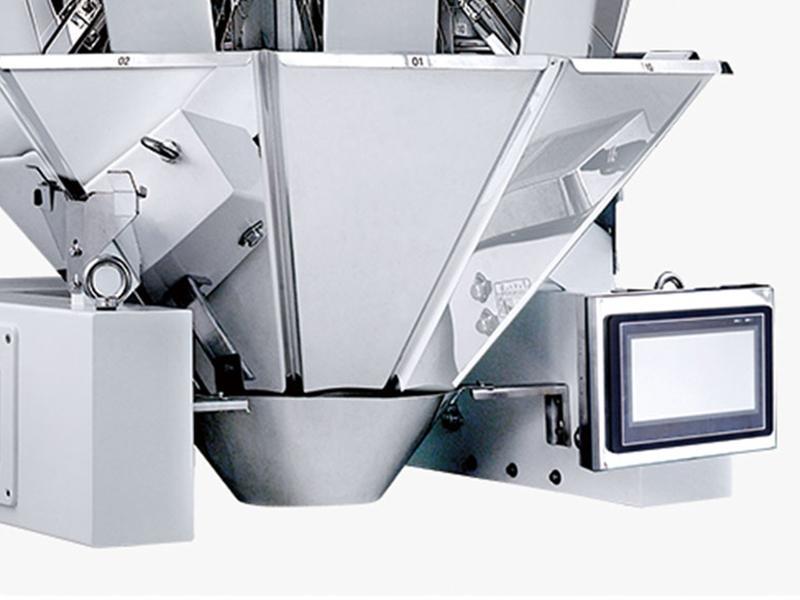

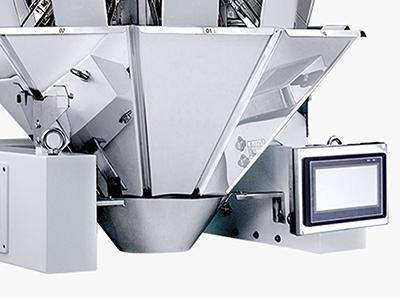

Main frame & touchscreen
Technical parameters for available models
Model
JW-A10
JW-A14
JW-A10
JW-A14
Product code
A10-1-3
A14-1-3
A10-2-1DW
A14-2-1DW
Single weighing range
10-1000g
10-1500g
10~1000g
10~1500g
Weighing Accuracy class
X(0.5)
X(0.5)
X(0.5).
X(0.5).
Maximum weighing speed (Packs/Min)
60P/M
100P/M
65 P/M
120 P/M
Bucket number
10
14
10
14
Bucket volume
1.6L
1.6L
1.6L
1.6L
Operator interface
7'' Touchscreen
Motor
Step motor
Power supply
220V/1000W/ 50/60Hz /10A
220V/1500W/ 50/60Hz /12A
220V/1000W/ 50/60Hz /10A
220V/1000W/ 50/60Hz /10A
Machine dimension (L × W × H)
1620 × 1100 × 1110mm
1700 × 1100 × 1265mm
1620 × 1080 × 1120mm
1700 × 1080 × 1210mm
Machine weight
380kg
490kg
400kg
500kg
Selective assembly equipment
Dimple plate/Timing hopper/Label printer/Reject device for check weigher
