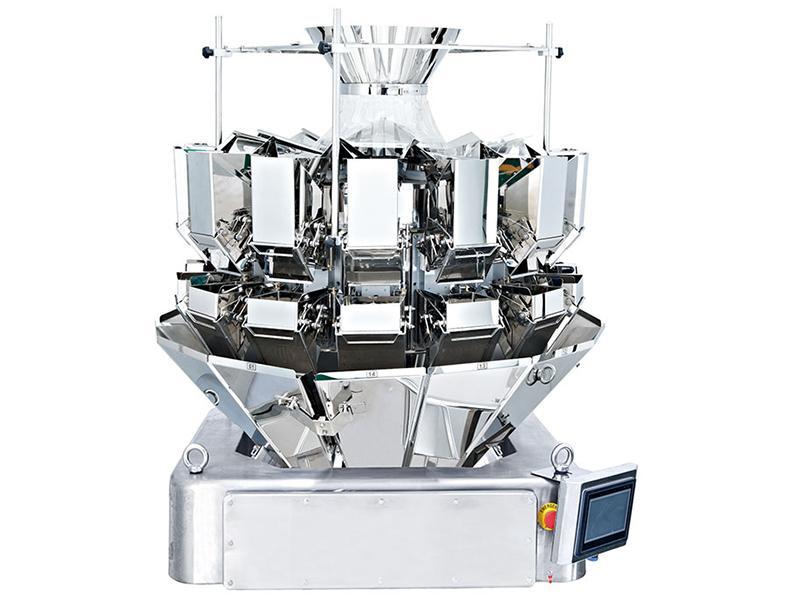

- JW-A Modular Circular Weigher for free flow products (Optional 10 heads, 14 heads; 10-1000g, 10-1500g; 1.6L, 2.5L, 5L)

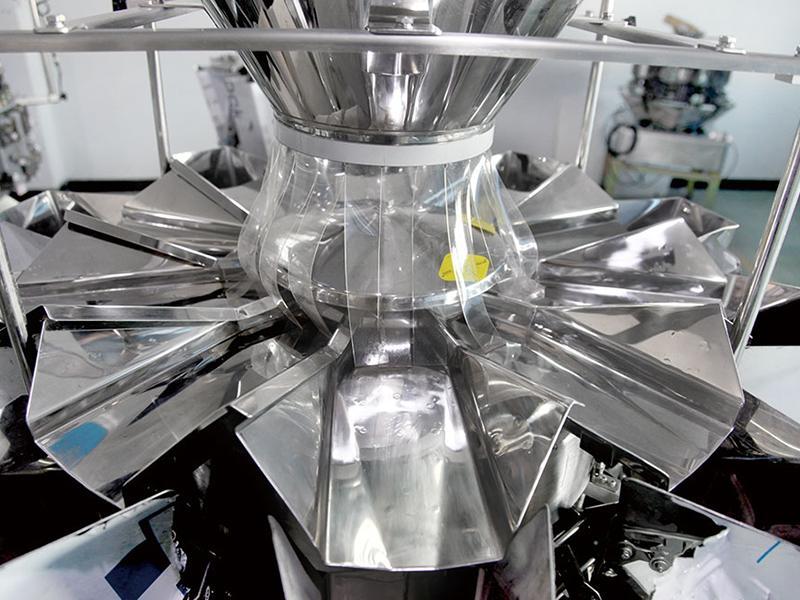

The infeed hopper on the JW-A modular multihead weigher has multiple-supporting structures for greater operating stability and it is also easy to assemble and disassemble as needed. All hoppers and buckets are easy to remove for adjustment or cleaning purposes.
This modular multihead weigher is equipped with 1.6L or 2.5L volume buckets. It is suitable for common products with standard weights such as baked goods, medicines, pet foods, snacks, hardware,etc.
Model | JW-A10 | JW-A14 | JW-A10 | JW-A14 |
Model code | A10-2-1D | A14-2-1D | A10-2-1 | A14-2-1 |
Single weighing range | 10~1000g | 10~1500g | 10-1000g | 10-1500g |
Weighing accuracy class | X(0.5) | X(0.5) | X(0.5) | X(0.5) |
Maximum weighing speed (Packs/Min) | 65 P/M | 120 P/M | 65P/M | 120P/M |
Bucket volume | 1.6L/2.5L | 3L | ||
Operator interface | 7''Touchscreen | 10.1''Touchscreen | ||
Motor | Step motor | |||
Power supply | 220V/1000W/ 50/60Hz /10A | 220V/1000W/ 50/60Hz /10A | 220V/1500W/ 50/60Hz /8A | 220V/1500W/ 50/60Hz /10A |

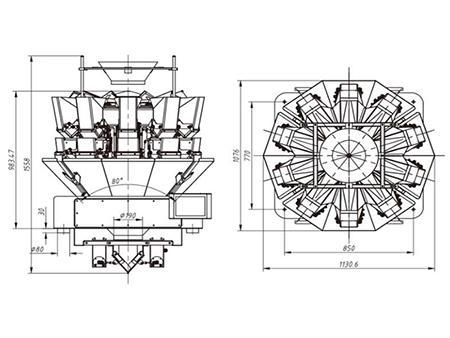

Machine dimension (L×W×H) | 1620×1080×1120mm | 1700×1080×1210mm | 1620X1080X1220mm | 1700X1200X1300mm |
Machine weight | 400kg | 500kg | 400kg | 500kg |
Dimple plate/Timing hopper/Label printer/Reject device for check weigher
Precision weighing and packing is an indispensable process in the production of consumer goods and with more than a decade of experience in this industry, Guangdong Kenwei Intellectual Machinery Co. provides extensive solutions. Kenwei designs and produces equipment like multihead weighers, linear weighers, check weigher, metal detector, conveyor equipment, as well as many other machines to maximize the precision and efficiency of your operation. Our equipment can handle your products, weigh them with precision, and then take these accurate doses and feed them into your desired packaging method. Over the years, we have worked with clients in more than 100 countries and regions around the world, providing them with over 5000 weighing and packaging machines since 2006. Contact us today if you would like to learn more.
