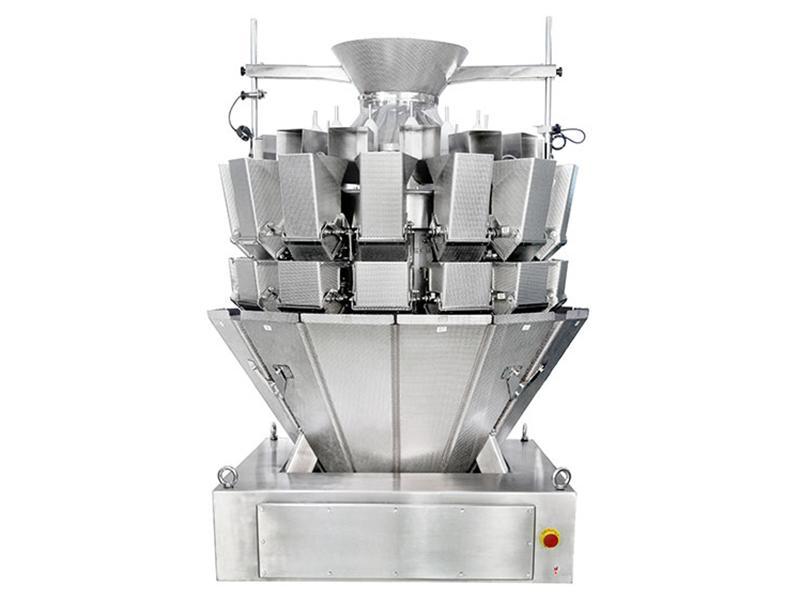

JW-AR Screw Feeder Weigher for Sticky or Wet Products (14 heads; 10-1500g; 2.5L)
JW-AR Screw Feeder Weigher for Sticky or Wet Products (14 heads; 10-1500g; 2.5L)
The JW-AR Screw feeder weigher is specially designed for processing sticky and oily products. Our screw feeder weigher is equipped with a screw feeding system which is much more efficient when dealing with sticky products compared to vibratory feeder weighers.
Details

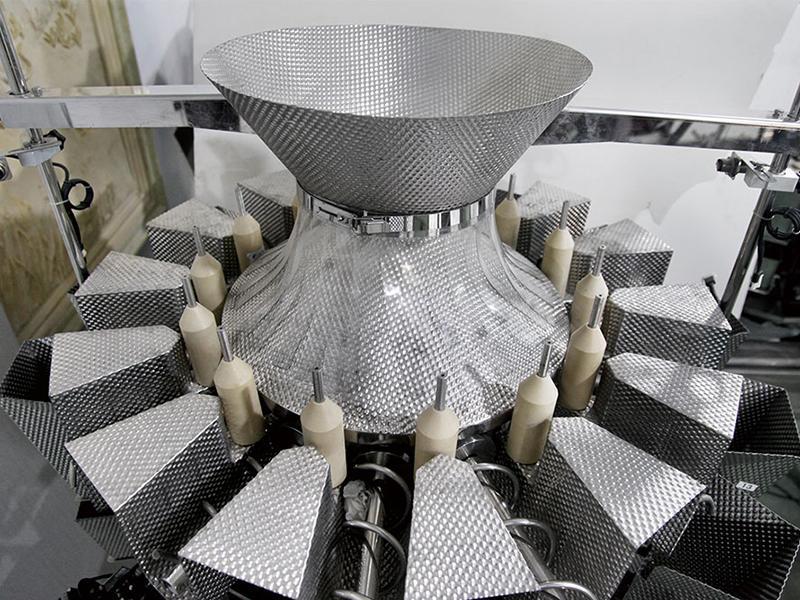

Waterproof covering parts

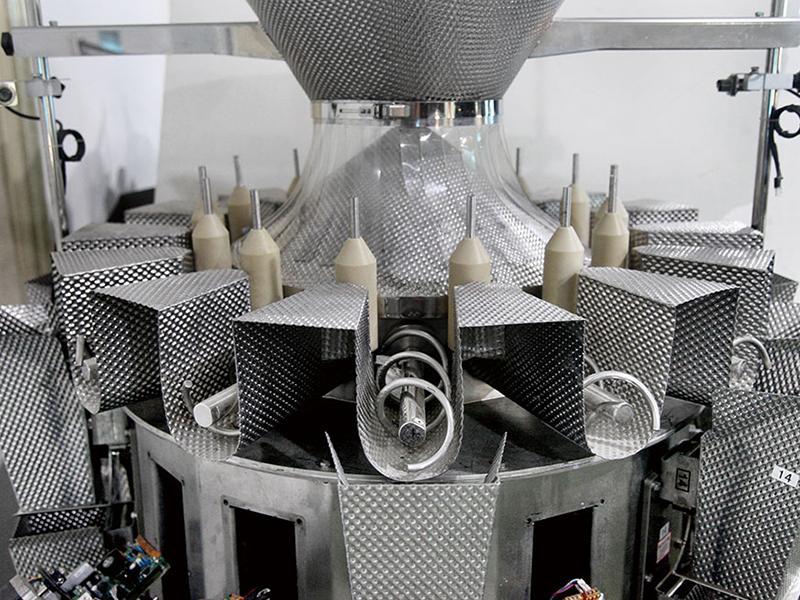

Screw feeder

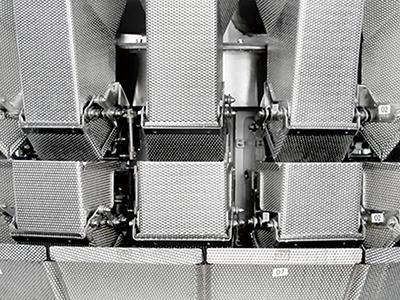

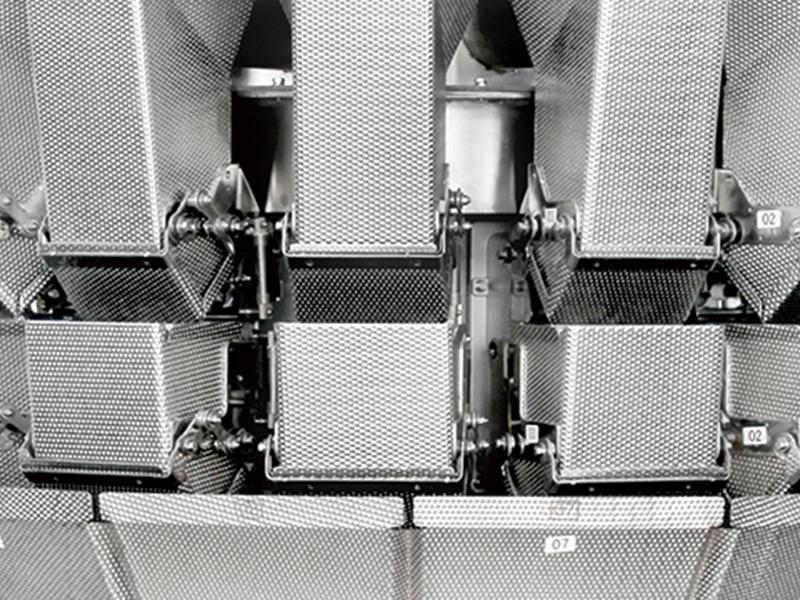

Pool(feed) buckets
Advantages
You can selectively assemble hopper with scrapers to prevent products from sticking to components.
The machine body is made from aluminum alloy which gives it great lightweight strength and makes it easy to clean.
Adjust the dropping frequency to prevent blockages if you pour too many products.
Intelligent malfunction system immediately alerts you when the machine encounters an error.
The screw feeder weigher adopts CAN (controller area network) bus technology and Modbus communication protocol to realize merge operation with the multihead weigher and packing machine for higher production efficiency.
Technical parameters for available model
Model
JW-A14
Product code
A14-2-3D
Single weighing range
10-1500g
Weighing accuracy class
X(0.5)
Maximum weighing speed (Packs/Min)
50P/M
Bucket volume
2.5L
Operator interface
10.1'' Touchscreen
Motor
Step motor
Power spply
220V/1500W/ 50/60Hz /10A
Machine dimension (L×W×H)
1750×1130×1450mm
Machine weight
500kg
Selective assembly equipment
Dimple plate/Timing hopper/Label printer/Reject device for check weigher
Have some questions?
Our experts owe ready to help answer all of your questions and give you the most cost effective quotes.
Precision weighing and packing is an indispensable process in the production of consumer goods and with more than a decade of experience in this industry, Guangdong Kenwei Intellectual Machinery Co. provides extensive solutions. Kenwei designs and produces equipment like multihead weighers, linear weighers, check weigher, metal detector, conveyor equipment, as well as many other machines to maximize the precision and efficiency of your operation. Our equipment can handle your products, weigh them with precision, and then take these accurate doses and feed them into your desired packaging method. Over the years, we have worked with clients in more than 100 countries and regions around the world, providing them with over 5000 weighing and packaging machines since 2006. Contact us today if you would like to learn more.
