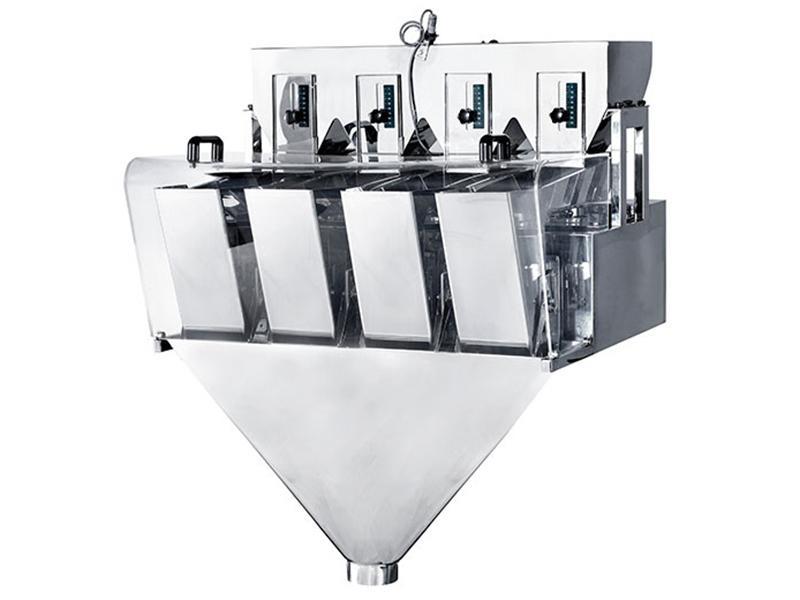

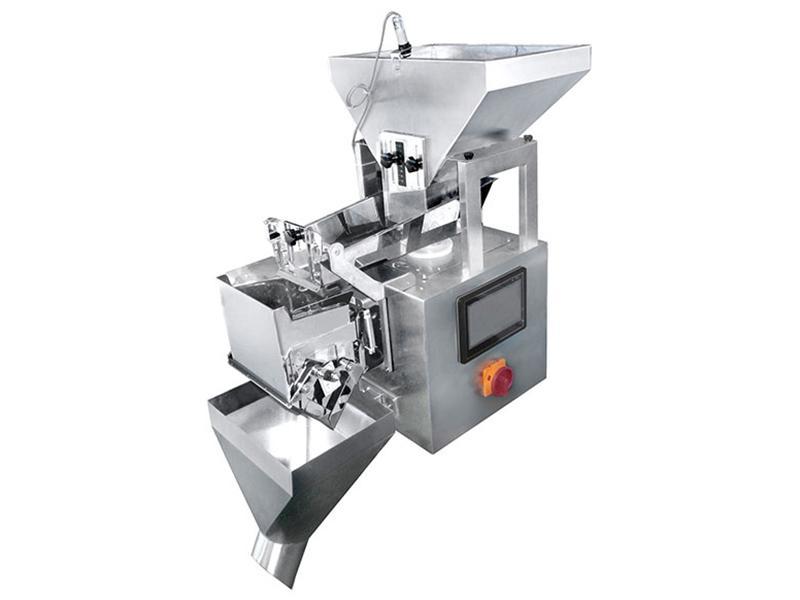

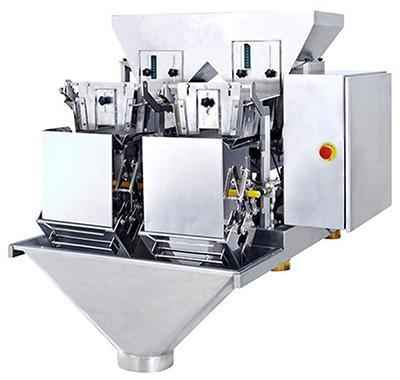

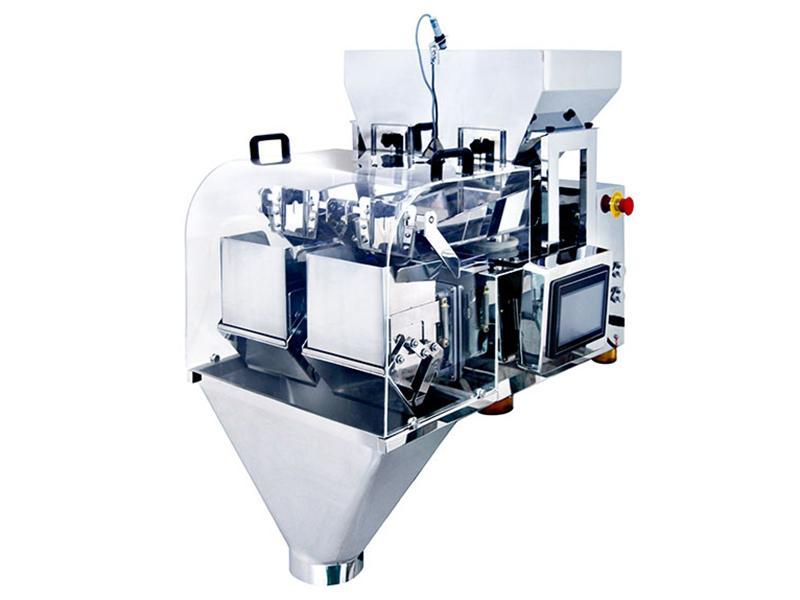

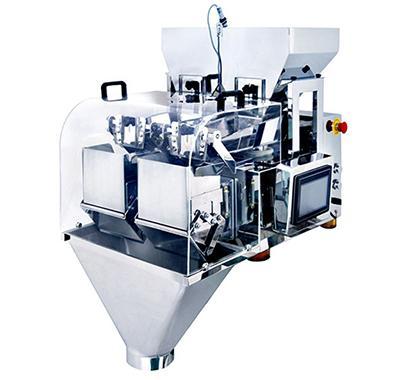

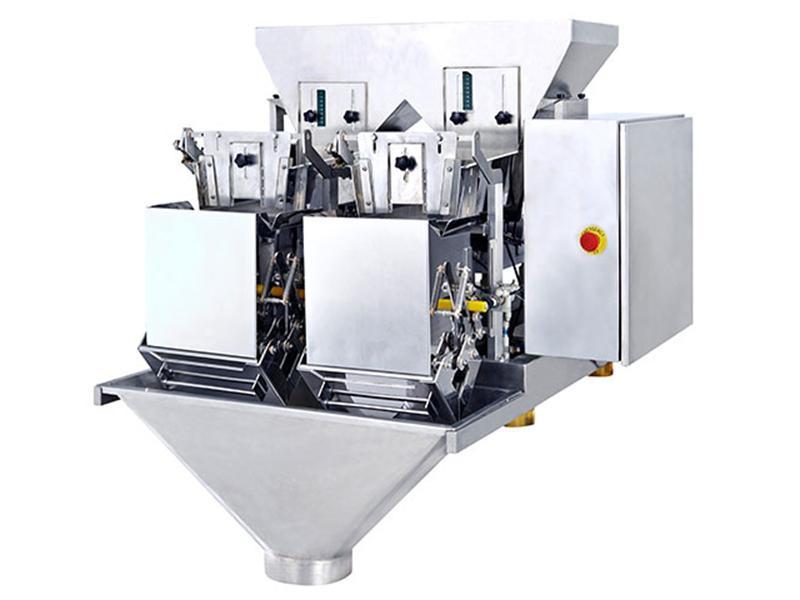

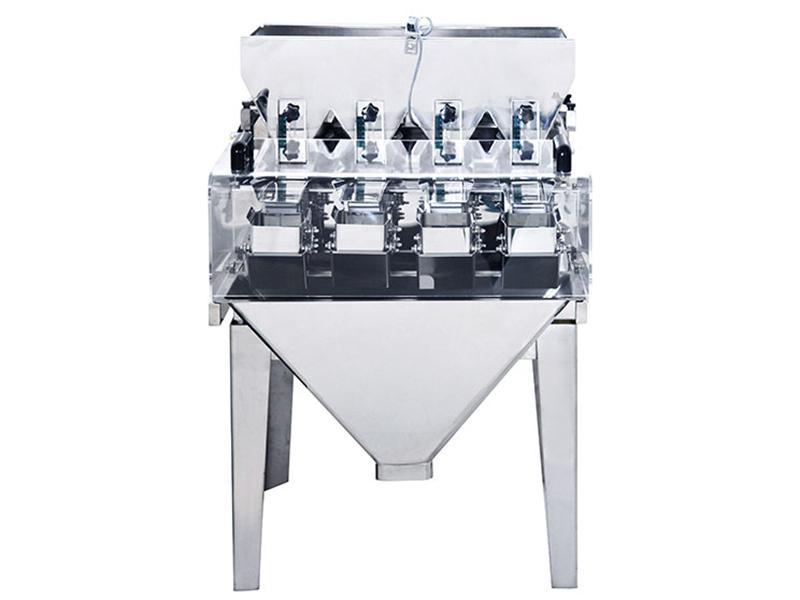

Modular linear weighers are widely used for mixing, dosing, weighing and packing sliced, rolled and regular shaped products, as well as powder or small granule products such as sugar, seeds, rice, coffee powder, seasoning powder and more.
This series of modular linear weighers features manual feeding, though it can be equipped with an automatic bagging machine to create a complete packing production line.
Technical parameters for available model
Model
JW-AX1
JW-AX2
JW-AXM2
JW-AX4
JW-AXS4
Product code
X1-2-1
X2-2-1
XM2-2-1
X4-2-1
XS4-2-1
Single weighing range
20-1000g
50-3000g
1000-12000g
50-2000g
5-300g
Weighing accuracy class
X(1)
X(1)
X(1)
X(1)
X(1)
Maximum weighing speed (Pack/Min)
10-15P/M
30P/M
25OP/M
55p/m
70p/m
Bucket volume
4.5L
4.5L
15L
3L
0.5L
Pre-installed parameter (set)
20
20
20
20
20
Maximum product type
1
2
2
4
4
Power
700W
1200W
1200W
1200W
1200W
Power supply
220V/50/60HZ/5A
220V/50/60HZ/6A
220V/50/60HZ/6A
220V/50/60HZ/6A
220V/50/60HZ/6A

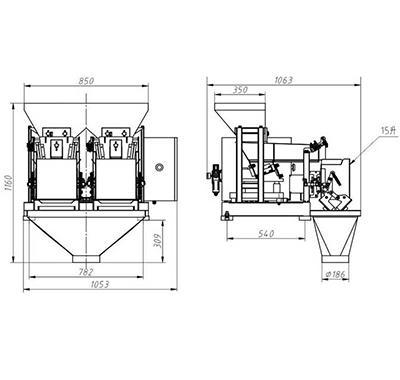

Machine dimension(L × W × H)
860 × 570 × 920mm
920 × 800 × 890mm
1215 × 1160 × 1020mm
1080 × 1030 × 820mm
820 × 800 × 700mm
Advantages
All parts are made of food grade stainless steel for sanitary purposes.
The bucket doors are pneumatically controlled, feature automatic opening and closing.
Contact parts like pool bucket, discharge hopper, vibro plates, weighing buckets and so on are all easy to remove, making cleaning and maintenance easy.
Self-adjustment on the vibration frequency depends on the processing products.
You can modify the parameters during operation based on specific situations.
The modular linear weigher uses a stepless vibratory feeding system for more even spreading.
