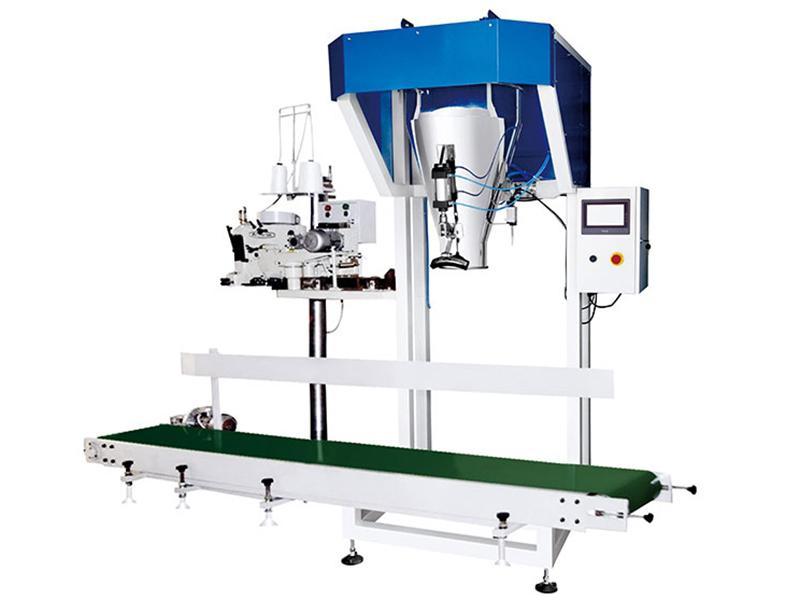

The linear weighing machine for food products is equipped with an auto bag clamping system. The bag needs to be manually hung up and fastened around the filling spout, then filling and begin when the machine clamps around the bag mouth. Processes like feeding, filling, and bag releasing are all automatically finished, making this weighing machine ideal for heavy products dosing and weighing such as corn, rice, peanuts or other food bagging, grain bagging, light industry, and chemical industrial bagging purposes.
Details
Power supply unit

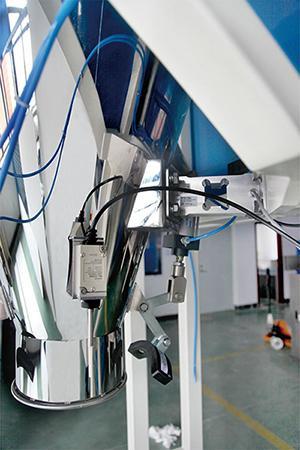

Sensor parts

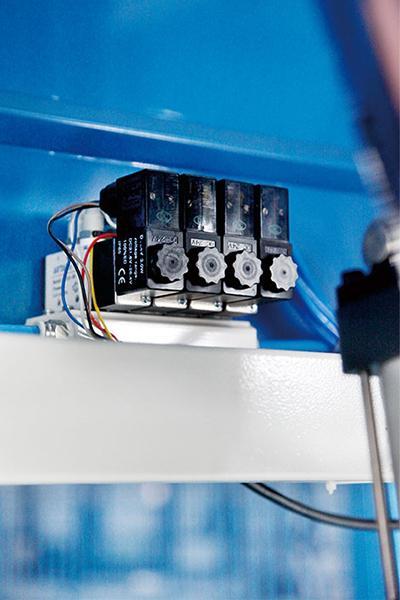

Solenoid/magnetic valve parts
Technical parameters for available model
Model
JW-AX1
Product code
XL1-2-1
Single weighing range
5-50Kg
Weighing accuracy class
10-50g
Maximum weighing speed (Pack/Min)
7-11P/M
Operator interface
7'' Touchscreen
Selective assembly equipment
Conveyor belt/Bag sealer
Power supply
220V/80W/50/60HZ/0.4A
Machine dimension (L×W×H)
1250X1150X2280mm
Machine weight
150kg
Advantages
The control panel allows for a fast retrieval of previously installed parameters.
The control panel and the AD (analog to digital) converter adopt CAN (controller area network) bus technology, ensuring the weighing process is fully controlled by the AD modular panel. This allows for a fast response time without having to go through the entire communication network.
The signal output port uses a free output modular design, allowing users to easily adjust the output signal based on your needs, and this linear weigher has a signal detection function which helps elimination system malfunctions.
This linear weighing machine features a statistics function which memorizes detailed production records.
The AD converter for the weighing system has a working frequency of 400 times/second, so that the weighing accuracy is relatively high.
The linear weigher has 3 modes of different feeding speed for your choice. You can adjust your feeding speed according to your processing product and your packaging output.
All contact parts on the linear weighing machine are made of food grade stainless steel for sanitary purposes as well as easy cleaning and maintenance.
