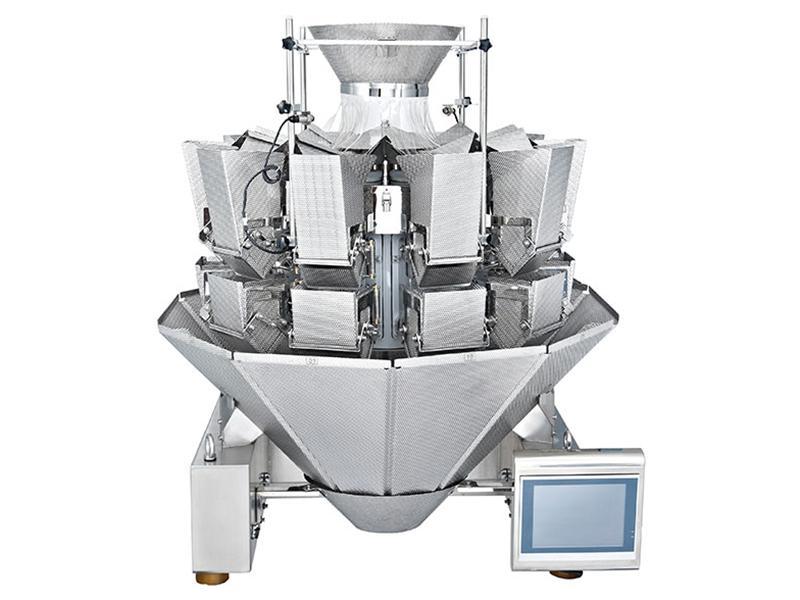

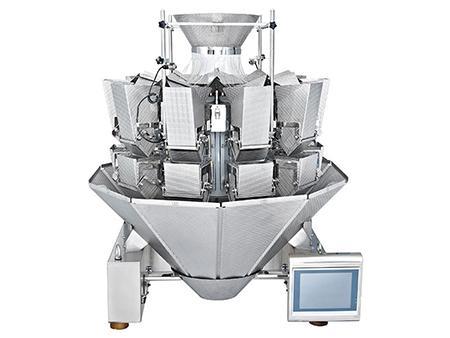

The vibratory feeder weigher is outfitted with an electromagnetic vibration sensor and dispenses granular, block or powder products continuously and uniformly using stable vibration, to realize fast and accurate weighing.
Details
Machine body

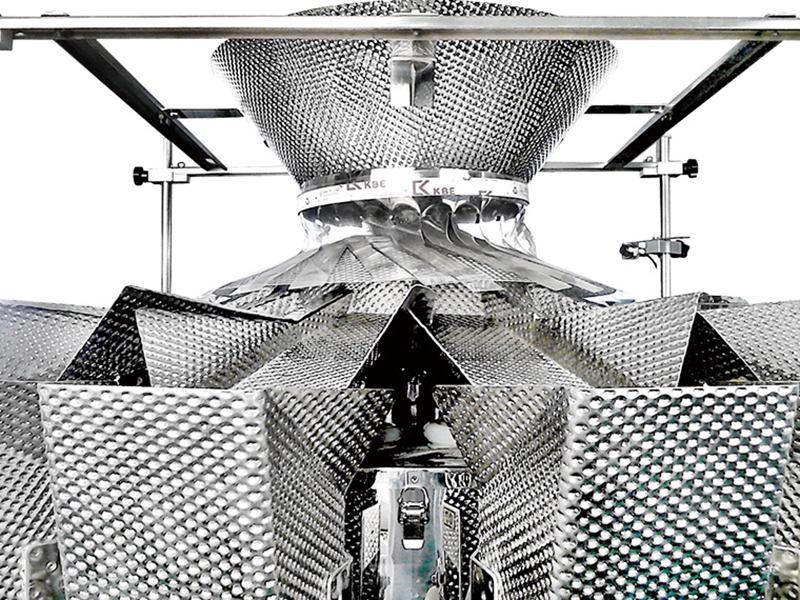

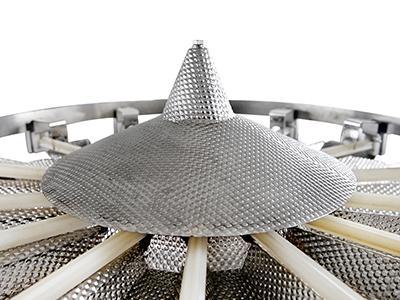

Vibro rotary plate (center cone)
Vibro feeding lane

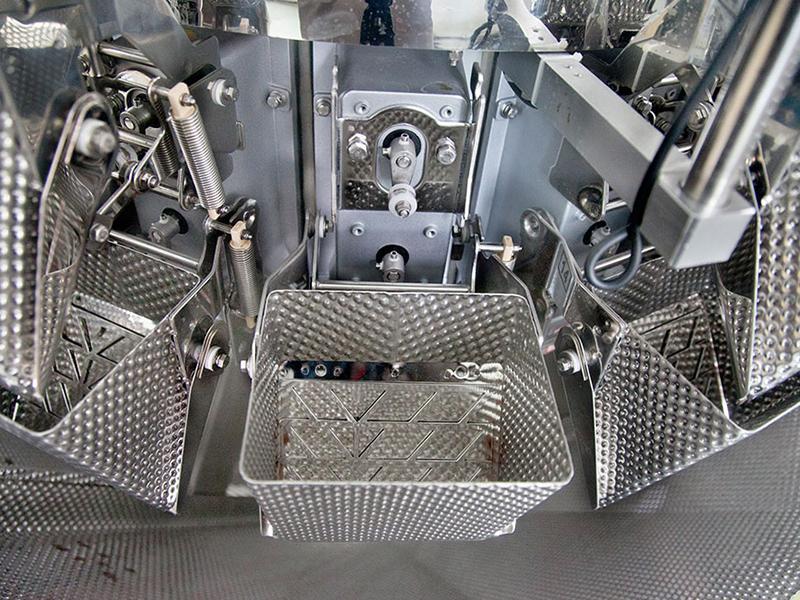

Weighing bucket
Sloped discharge chute
Our vibratory feeder weigher design has been modified for different products:
A rotating rod is added in between each vibro feeder to spin long and soft materials like pasta into the vibro feeding lane, and successfully drop them into the pool buckets. The vibratory feeder lane can process products with a maximum length of 300mm.
If you are processing heavy products like frozen foods, vegetables, fruits etc., due to the strong impact force they might cause, our multihead weigher machine body is thickened using cast aluminum for higher strength and greater durability.

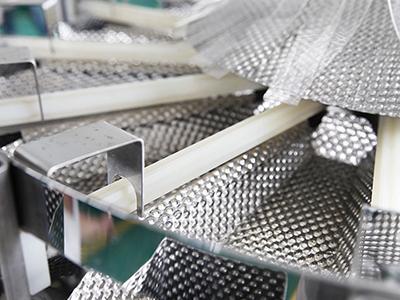

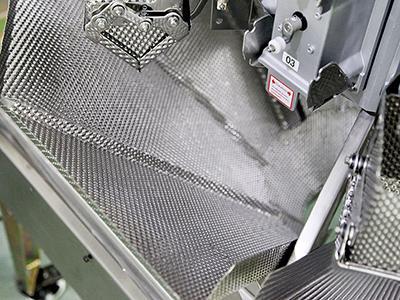

The 60 degrees sloped chutes are designed with textured patterns to prevent products from sticking. The machine is suitable for products such as snacks, gummy candies, etc.
Available Models
Model
Product code
Single weighing range
Weighing accuracy class
Maximum weighing speed (Packs/Min)
Bucket number
Bucket volume
Operator interface
Power supply
Machine dimension (L × W × H)
Machine weight
JW-A10
AS10-1-2
5-60g
X(0.5)
60P/M
10
0.3L
7''Touchscreen
220V/900W/ 50/60Hz /8A
1190 × 970 × 1950mm
180kg
JW-A14
AS14-1-2
5-60g
X(0.5)
120P/M
14
220V/1100W/ 50/60Hz /10A
1190 × 970 × 1950mm
220kg
JW-AM10
AM10-1-11
100-3000g
X(1)
50P/M
10
5L
220V/1500W/ 50/60Hz /10A
1950 × 1280 × 1690mm
700kg
JW-AM14
AM14-1-11
100-3000g
X(1)
80P/M
14
5L
220V/1500W/ 50/60Hz /12A
2195 × 1380 × 2060mm
850kg
JW-A10
A10-1-6
10-1000g
X(0.5)
30P/M
10
1.6L
220V/1500W/ 50/60Hz /10A
1620 × 1100 × 1420mm
380kg
JW-A14
A14-1-6
10-1000g
X(0.5)
60P/M
14
1.6L
220V/1500W/ 50/60Hz /10A
1750 × 1130 × 1570mm
490kg
JW-A10
A10-1-12
10-1000g
X(0.5)
60P/M
10
1.6L/2.5L
220V/1000W/ 50/60Hz /10A
1620(L) × 1100(W) × 1420(H)
380kg
JW-A12
A12-1-12
10-1000g
X(0.5)
60P/M
12
1.6L/2.5L
220V/1200W/ 50/60Hz /10A
1700(L) × 1100(W) × 1130(H)
450kg
JW-A14
A14-1-12
10-1500g
X(0.5)
100P/M
14
1.6L/2.5L
220V/1500W/ 50/60Hz /10A
1750(L) × 1130(W) × 1420(H)
490kg
JW-A10
A10-1-7
10-1000g
X(0.5)
65P/M
10
1.6L/2.5L
220V/1000W/ 50/60Hz /10A
1620(L) × 1100(W) × 1110(H)
380kg
JW-A14
A14-1-7
10-1500g
X(0.5)
120P/M
14
1.6L/2.5L
220V/1500W/ 50/60Hz /12A
1750(L) × 1130(W) × 1200(H)
490kg
Selective assembly equipment
Dimple plate/Timing hopper/Label printer/Reject device for check weigher
