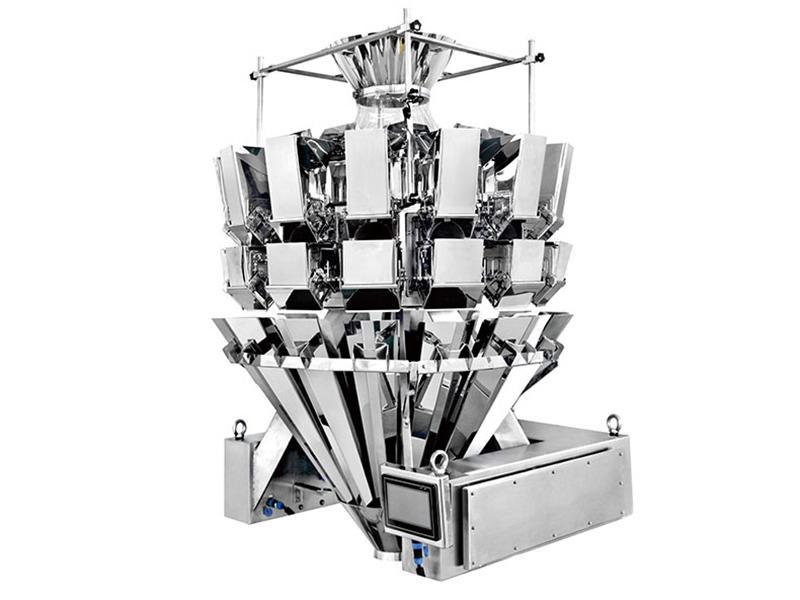

Our Stick Shaped Weigher for free flow products (Optional 10 heads, 14 heads; 3-200g, 10-1000g, 10-1500g, 100-3000g; 0.5L, 2.5L, 5L) features individual sloped chutes to ensure the products end up in the packging machine vertically all the way down. The equipment was specially designed for dosing and weighing strips or stick shaped products such as stick biscuits, chopsticks, pencils, pens, etc. The weigher can process products with a maximum length of 200mm.
Details

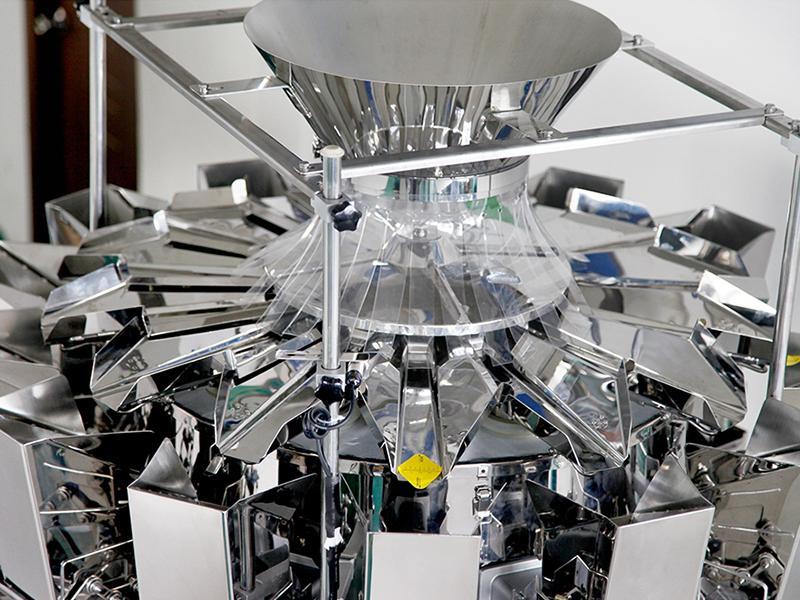

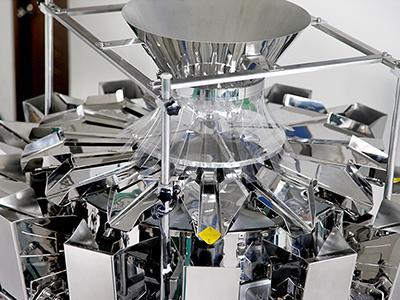

Vibro feeding lane

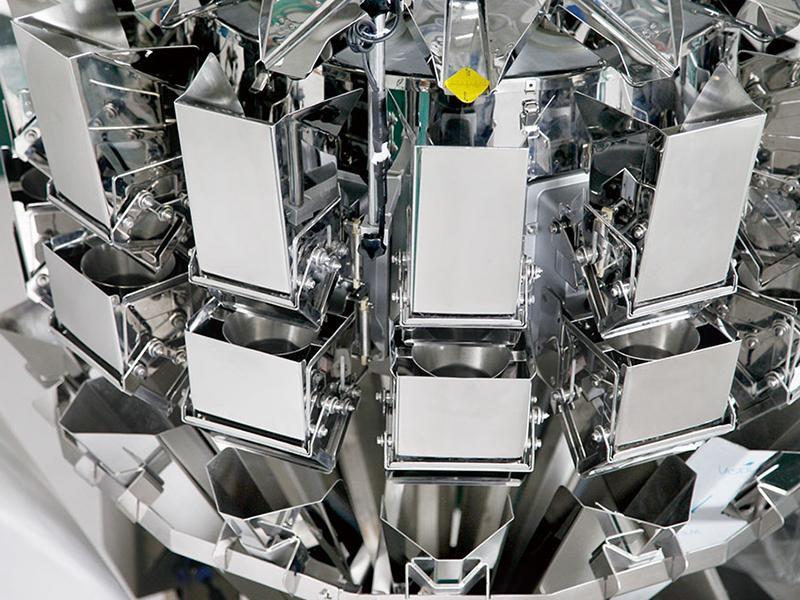

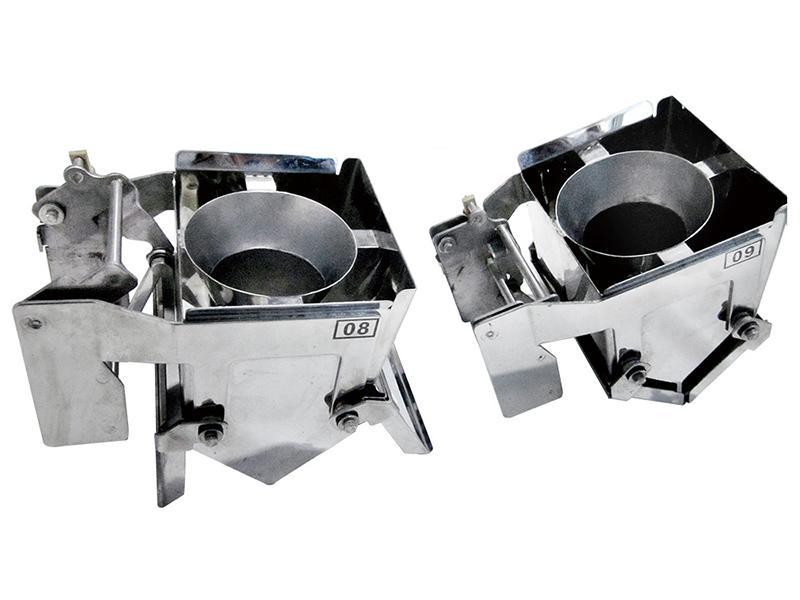

Pool(feed) buckets
Weighing buckets

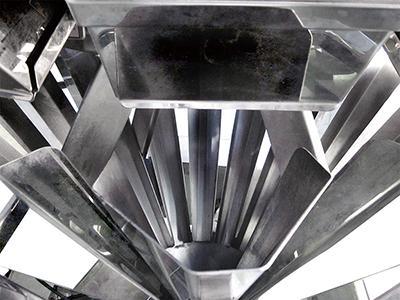

Sloped discharge chutes
Technical parameter for available models
Model
JW-A10
JW-A14
JW-AM14
JW-AS14
Product code
A10-1-9
A14-1-9
AM14-1-9
AS14-1-9
Single weighing range
10-1000g
10-1500g
10-3000g
3-200g
Weighing accuracy class
X(0.5)
X(0.5)
X(1)
X(0.5)
Maximum weighing speed (Packs/Min)
30P/M
60P/M
60P/M
60P/M
Bucket volume
2.5L
5L
0.5L
Operator interface
7'' Touchscreen
Power supply
220V/2000W/ 50/60Hz /12A
220V/2000W/ 50/60Hz /12A
220V/2000W/ 50/60Hz /12A
2200V/1100W/ 50/60Hz /10A

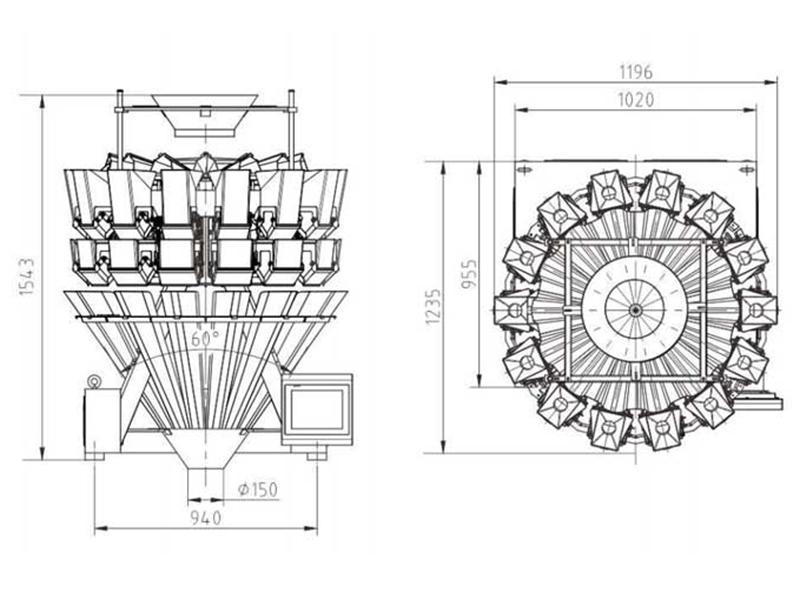

Machine dimension (L×W×H )
1620 × 1100 × 1420mm
1750 × 1130 × 1420mm
2195 × 1380 × 2060mm
1190 × 970 × 950mm
Machine weight
490kg
490kg
650kg
240kg
Selective assembly equipment
Dimple plate/Timing hopper/Label printer/Reject device for check weigher
