JW-LCX4 VFFS Machine, Equipped with Z-shape Bucket Elevator, with 12 heads weigher

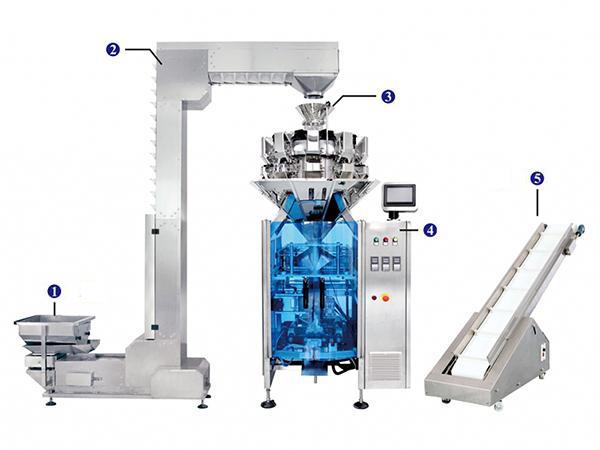

- Vibratory feeder
- Z-shaped elevating conveyor
- 12 heads weigher
- Vertical form fill and seal machine
- Finished product conveyor
The JW-LCX4 VFFS machine is equipped with a Z-shaped bucket elevator and a 12 heads weigher. It is composed of the vibratory feeder, Z-shaped elevating conveyor, 12 heads weigher and VFFS machine in order to automatically complete the entire feeding, weighing, bag forming, bag filling, bag sealing, label printing and discharging process.
The Z-shaped elevating conveyor is able to transfer products vertically at fast speeds, and features a compact structure of only 3,000mm high, making it suitable for small factories with limited space.
Range of application
Applicable products: All types of particles, pieces, strips, round or irregular shaped products such as candies, seeds, pet foods, puffed foods, hardware, rubber parts and more.
Applicable bag materials: Composite film with thickness between 0.03-0.15mm, single layer PE film, paper film and more.

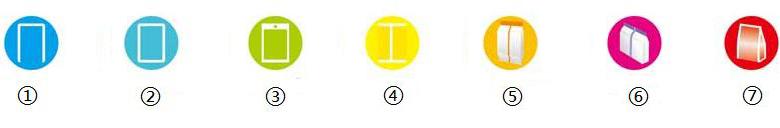

Applicable bag types
① 3-side seal pouches
② 4 side seal pouches
③ Flat bags
④ Back sealed bag
② 4 side seal pouches
③ Flat bags
④ Back sealed bag
⑤ Back sealed gusset bags
⑥ Gusset bags
⑦ Quad-seal gusseted bags
⑥ Gusset bags
⑦ Quad-seal gusseted bags
Technical parameters
| Packaging speed (Pack/Min) | 65P/M |
| Film width | 180-520mm |
| Single weighing range | 10-1500g |
| Film thickness | 0.04mm～0.15mm |
| Form fill and seal machine power | 3.4KW |
| Form fill and seal machine voltage | 220V |
| Multihead weigher power | 1500W |
| Multihead weigher voltage | 220V |
Note: The provided parameters are for reference only. We are able to manufacture custom VFFS machines equipped with Z-shaped bucket elevators according to your specific product types, weighing range, factory area and output.
Selective assembly equipment
Check weigher
Metal Detectors
Combined metal detector and check weigher
Thermal Transfer Overprinter
Count verification machine
Conveyor equipment
Accessories
