JW-LCX1 Vertical Form, Fill and Seal Line,with 12 heads weigher

JW-LCX1 Vertical Form, Fill and Seal Line,with 12 heads weigher

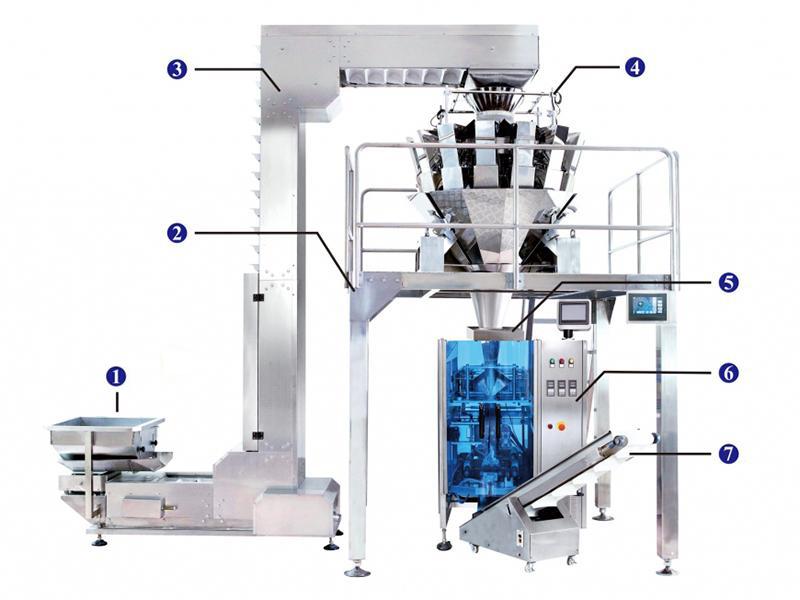

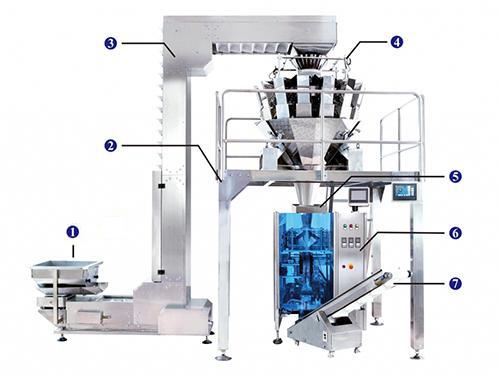

  • Vibratory feeder
  • Working platform
  • Z-shaped elevating conveyor
  • 12 heads weigher
  • Free-fall metal detector
  • Vertical form fill and seal machine
  • Finished product conveyor

The JW-LCX1 vertical form, fill and seal line with a 12 heads weigher is an economic production line composed of the vibratory feeder, working platform, Z-shaped elevating conveyor, 12 heads weigher, free-fall metal detector, vertical form fill and seal machine, and finished product conveyor. It is used to automatically carry out the entire process for feeding, weighing, bag forming, bag filling, bag sealing, label printing and discharging automatically.

The 12 heads weigher is able to count the large piece/bag numbers in the weighing buckets, and drops the target piece/bag numbers after an accurate calculation. This machine is highly recommended for use in processing small bag products with a small weight tolerance.

Range of application
Applicable products: All types of granules, pieces, strips, round or irregular shaped products such as candies, seeds, pet foods, puffed foods, hardware, rubber parts and more.
JW-LCX1 Vertical Form, Fill and Seal Line,with 12 heads weigher

Applicable bag materials: Composite film with thickness between 0.03-0.15mm, single layer PE film, paper film and more.

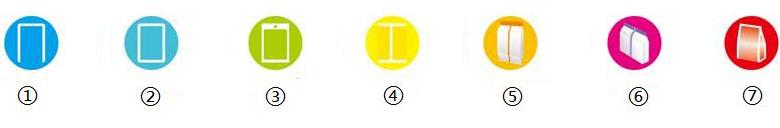

Applicable bag types
JW-LCX1 Vertical Form, Fill and Seal Line,with 12 heads weigher
① 3-side seal pouches
② 4 side seal pouches
③ Flat bags
④ Back sealed bag
⑤ Back sealed gusset bags
⑥ Gusset bags
⑦ Quad-seal gusseted bags
Technical parameters
Packaging speed (Pack/Min) 65P/M
Film width 140-320mm
Single weighing range 10-1500g
Film thickness 0.04mm～0.15mm
Form fill and seal machine power 2.5KW
Form fill and seal machine voltage 220V
Multihead weigher power 1200W
Multihead weigher voltage 220V

Note: The provided parameters are for reference only, and we will manufacture custom vertical form fill and seal lines according to specific product types, weighing range, factory location, and output.

Selective assembly equipment
  • Check weigherCheck weigher
  • Metal DetectorsMetal Detectors
  • Combined metal detector and check weigherCombined metal detector and check weigher
  • Thermal Transfer OverprinterThermal Transfer Overprinter
  • Count verification machineCount verification machine
  • Conveyor equipmentConveyor equipment
  • AccessoriesAccessories
