JW-LCX3 Form, Fill and Seal Bagging System，with 14 heads weigher

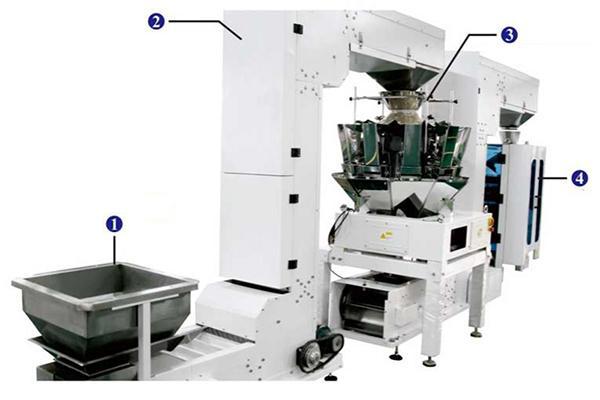

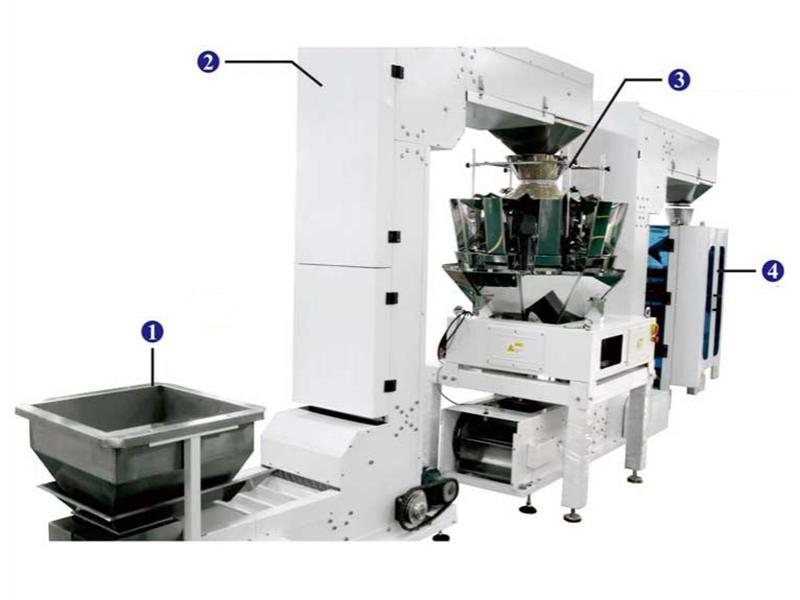

- Vibratory feeder
- Z-shaped elevating conveyor
- 14 heads weigher
- Vertical form fill and seal machine
The JW-LCX3 form fill and seal bagging system with a 14 heads weigher is composed of the vibratory feeder, Z-shaped elevating conveyor, 14 heads weigher and vertical form fill and seal machine in order to automatically complete the entire process of feeding, weighing, bag forming, bag filling, bag sealing, label printing and discharging.
This production line almost doubles the packaging speed through an improvement of the feeding speed, and with its height of 1,000mm, it is an ideal choice for factories with lower ceiling space.
Range of application
Applicable products:All types of granules, pieces, strips, round or irregular shaped products such as candies, seeds, pet foods, puffed foods, hardware, rubber parts and more.
Applicable bag materials: Composite film with thickness between 0.03-0.15mm, single layer PE film, paper film and more.

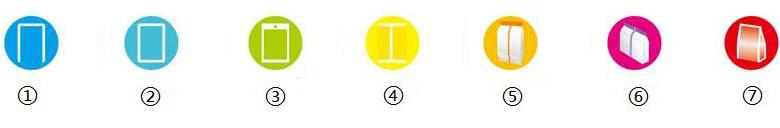

Applicable bag types
① 3-side seal pouches
② 4 side seal pouches
③ Flat bags
④ Back sealed bag
② 4 side seal pouches
③ Flat bags
④ Back sealed bag
⑤ Back sealed gusset bags
⑥ Gusset bags
⑦ Quad-seal gusseted bags
⑥ Gusset bags
⑦ Quad-seal gusseted bags
Technical parameters
| Packaging speed (Pack/Min) | 120P/M |
| Film width | 160-420mm |
| Single weighing range | 100-3000g |
| Film thickness | 0.04mm-0.15mm |
| Form fill and seal machine power | 3.4KW |
| Form fill and seal machine voltage | 220V |
| Multihead weigher power | 1500W |
| Multihead weigher voltage | 220V |
Note: The provided parameters are for reference only, and we can manufacture custom form fill and seal bagging systems according to your specific product types, weighing range, factory area and output.
