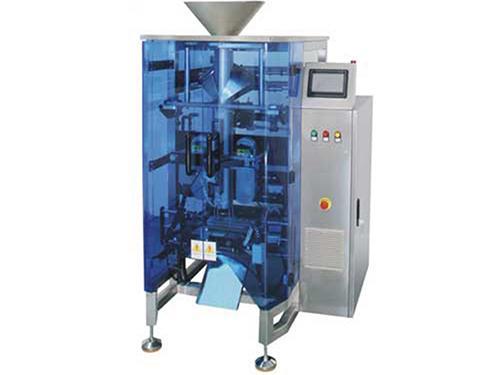

Vertical Form Fill Seal Machine (VFFS)

Vertical Form Fill Seal Machine (VFFS)

The vertical form fill seal machine is driven by a dual servo motor and is able to fully control acceleration, deceleration and positioning. The maximum production speed reaches 100 bags per minute. With a convenient operation, the vertical form fill seal machine has a standard configuration of stainless steel or carbon steel machine structure (selective assembly), vacuum pull bets for easier control on thin metallized films as well as a hinged electrical enclosure. Either side of the bagging machine is able to connect with other equipment.

Range of application

Applicable packing products: All types of snacks, frozen foods, pet foods, puffed foods, medicinal materials, hardware and more

Applicable bag types: Pillow bags, gusset bags, euro slot bags and more

Applicable film materials: All types of composite films, single layer PE film

Applicable film thickness: 0.04mm-0.15mm

Advantages
  • Control: Uses a PLC control panel that allows for malfunction display, malfunction alerts, and a protective stop function whenever the door is opened.
  • Bag forming: Automatic vertical bag forming.
  • Bag filling and sealing: Both the vertical and horizontal sealer bar is driven by an air cylinder, and carries out bag sealing via a continuous heating. The vertical form fill seal machine can make sealed bags (the system will stop automatically if the sealing bars clamp on the products) or reopen bags with a sticker/clip.
  • Film tension: Driven by servo motor to adjust the tension on film transportation. This ensures the bag forming consistency.
  • Film transport & unwind: Uses an air-expansion of the mechanical film shaft, and is equipped with label printing adjustment, color code tracking adjustment, and auto alert without feeding.
  • Machine structures: Stainless steel or carbon steel structure (selective assembly).

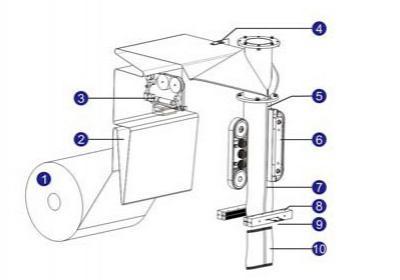

Vertical form fill seal machine operation flow
Vertical form fill seal machine operation flow

① Film roll
② Film tightening
③ Label printing
④ Color code tracking
⑤ Forming
⑥ Edge sealing
⑦ Filling
⑧ Sealing jaws
⑨ Cutting
⑩ Bag discharging

Available Models
Models JW-E3220 JW-E4230 JW-E5235 JW-E6240 JW-E7245 JW-E8350 JW-H3220 JW-H4230 JW-H5235 JW-H6240 JW-H7245 JW-H8350
Applicable film width 140-320mm 160-420mm 180-520mm 180-620mm 180-720mm 180-830mm 140～320mm 160～420mm 180～520mm 180～620mm 200～720mm 180～830mm
Bag length range 60-200mm 60-300mm 60-350mm 80-400mm 90-450mm 90-500mm 60-200mm 60-300mm 60-350mm 80-400mm 90-450mm 60-500mm
Bag width range 60-150mm 70-200mm 80-250mm 80-300mm 70-350mm 60-400mm 60-150mm 70-200mm 80-250mm 80-300mm 70-350mm 80-400mm
Bagging speed 15-70bags/min 15-60bags/min 15-60bags/min 15-60bags/min 0-70bags/min 5-50bags/min 15～100bags/min 15～100bags/min 15～90bags/min 15～85bags/min 0～70bags/min 5～65bags/min
Power supply 2.5KW/220/50/60HZ 3.4KW/220V/50/60HZ 3.4KW/220V/50/60HZ 3.6KW/220V/50/60HZ 5.5KW/220V/50/60HZ 5KW/220V/50/60HZ 2.9KW/220/50/60HZ 4.5KW/220V/50/60HZ 4.5KW/220V/50/60HZ 5.1KW/220V/50/60HZ 5.5KW/220V/50/60HZ 6.5KW/220V/50/60HZ
Operation pressure 0.6-0.8Mbra 0.6-0.8Mbra 0.6-0.8Mbra 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6~0.8Mbra 0.6~0.8Mbra 0.6~0.8Mbra 0.6~0.8MPa 0.6~0.8MPa 0.6~0.8MPa
Gas consumption speed 0.5m³/min 0.6m³/min 0.7m³/min 0.8m³/min 0.4m³/min 1.2m³/min 0.15m³/min 0.2m³/min 0.2m³/min 0.2m³/min 0.4m³/min 0.4m³/min
Machine dimension (L×W×H) 1158×930×1213mm 1465×1040×1470mm 1540×1160×1600mm 1640×1226×1709mm 1748×1344×1955mm 1848×1544×2155mm 1158×930×1213mm 1400×1100×1560mm 1514×1154×1590mm 1640×1226×1709mm 1748×1344×1955mm 1848×1544×2155mm
Machine weight 350Kg 400Kg 450Kg 550Kg 680Kg 800Kg 350Kg 450Kg 500Kg 550Kg 680Kg 850Kg
Selective assembly equipment
  • Gusset device
  • Gas flushing device (Nitrogen filling)
  • Chain-bag capability
  • Vibration device
  • Round or Euro hole punch
  • Custom sealing method
  • Air flushing system
  • Tear notch
  • PE film sealing method
  • Bag support device
  • Static eliminator
  • Vacuum device
  • Horizontal-seal cooling system
  • Automatic film alignment device
  • Feeding device
  • PLC RFID option for better security
Could connect with the following equipment
  • Multihead weigher
  • Linear weigher
  • Cup filler
  • Auger filler
  • Liquid pump
