JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher

JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher

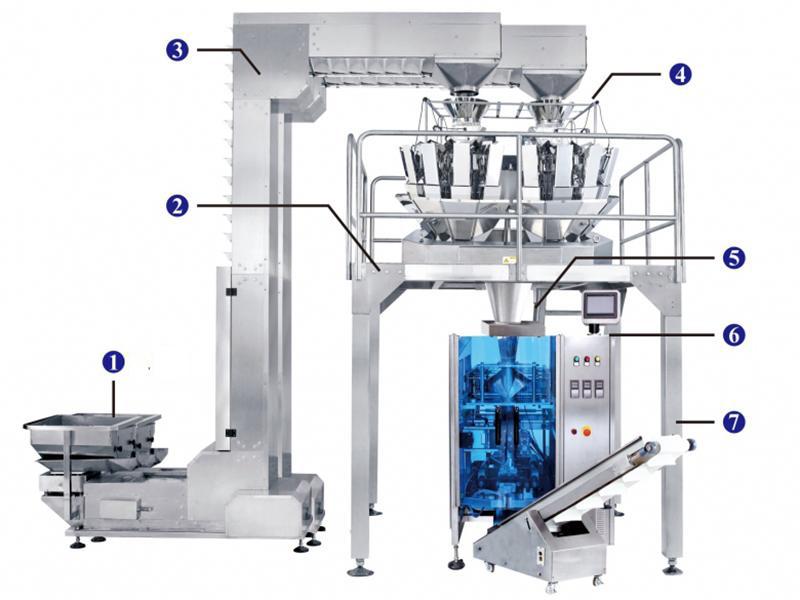

  • Vibratory feeder
  • Working platform
  • Z-shaped elevating conveyor
  • 10 heads weigher
  • Freefall metal detector
  • Vertical form fill and seal machine
  • Finished product conveyor

The JW-MIX1 weighing and packing line for mixed products is composed of the vibratory feeder, working platform, Z-shaped elevating conveyor, 10 heads weigher, free-fall metal detector, vertical form fill seal machine and finished product conveyor in order to automatically complete the feeding, dosing, weighing, bag forming and filling, bag sealing, label printing, mixing and discharging processes.

This production line is equipped with 2 multihead weighers to enhance the production efficiency, both of which are controlled using the same control panel so that the highest weighing accuracy is guaranteed.

Range of application
Applicable products: All types of particles, pieces, strips, round or irregular shaped products such as candies, seeds, pet foods, puffed foods, hardware, rubber parts and more.
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher

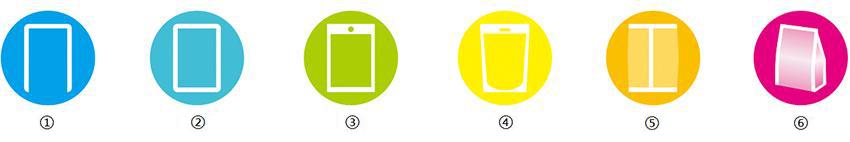

Pouch types
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher
① 3-side seal pouch
② 4 side seal pouch
③ Flat pouch
④ Standard stand-up pouch
⑤ Back sealed pouch
⑥ Quad seal gusseted pouch
Weighing and packing line for mixed products solutions
Model series Standard configuration Maximum packing speed Maximum packing weight Film width Film thickness Multihead weigher power Packing machine power Voltage

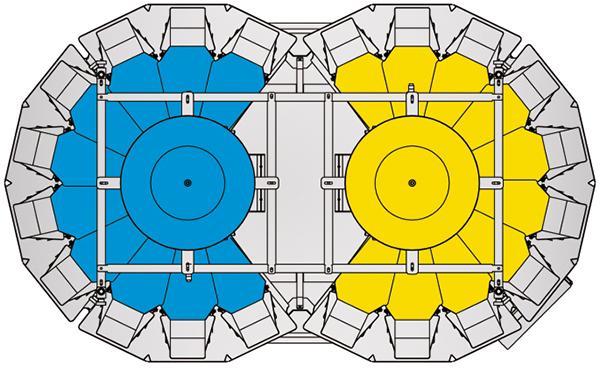

2 in 1 mixing
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher
 20 heads weigher 60p/min 2000g 180-520mm 0.04mm-0.15mm 990W 3.4KW 220v

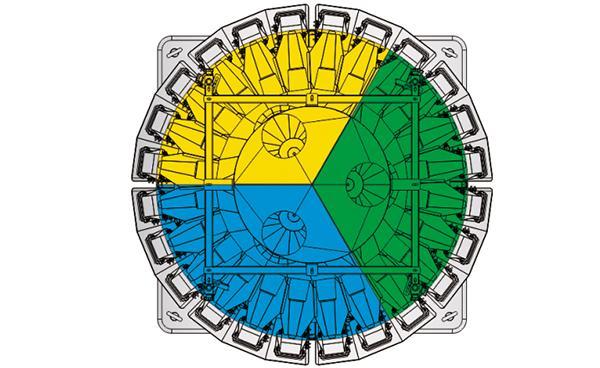

3 in 1 mixing
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher
 24 heads weigher 60p/min 300g 180-520mm 0.04mm-0.15mm 990W 3.4KW 220v

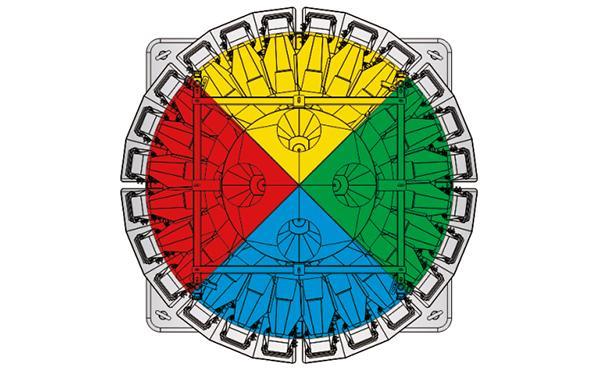

4 in 1 mixing
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher
 24 heads weigher 60p/min 240g 180-520mm 0.04mm-0.15mm 990W 3.4KW 220v
4 in 1 mixing using 32 heads weigher
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher
 32 heads weigher 60p/min 400g 180-520mm 0.04mm-0.15mm 990W 3.4KW 220v

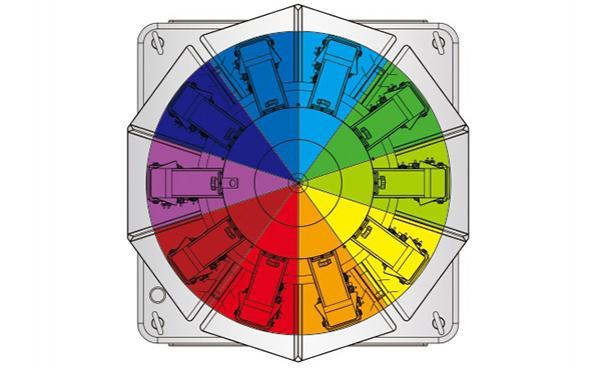

10 in 1 mixing using 10 heads weigher
JW-MIX1 Vertical Form Fill and Seal Packaging Line with 10 Head Weigher
 10 heads linear weigher 50p/min 1000g 180-520mm 0.04mm-0.15mm 990W 3.4KW 220v

Note: Kenwei provides custom cup filling and capping line if you have specific requirements.
