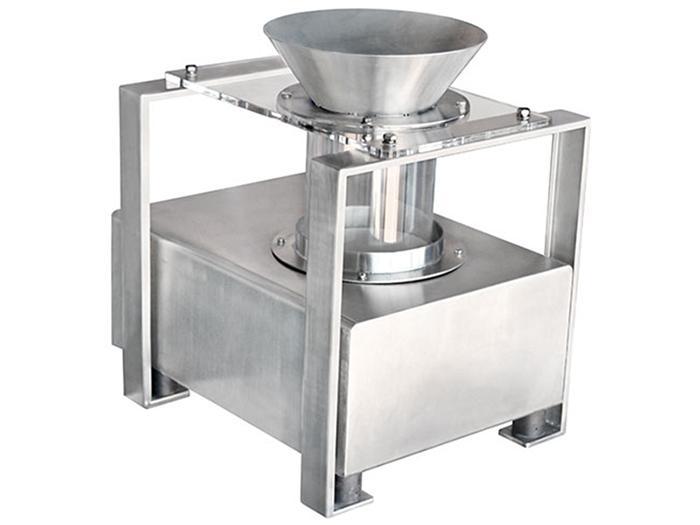

The free fall metal detector is equipped with a gravity flow tube with an open width of 120mm. This tube can be inserts under the multihead weigher or on top of the vertical form fill sealing machine where free-falling is applicable. This metal detector is used to inspect a variety of products, including powders, bulk amounts, strips, and more.
The free fall metal detector features a modular design, with a separate electrical box for easier operation and maintenance.
Details

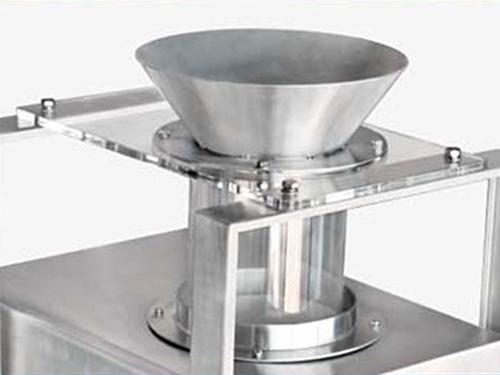

Gravity Infeed hopper
Metal detection flow tube

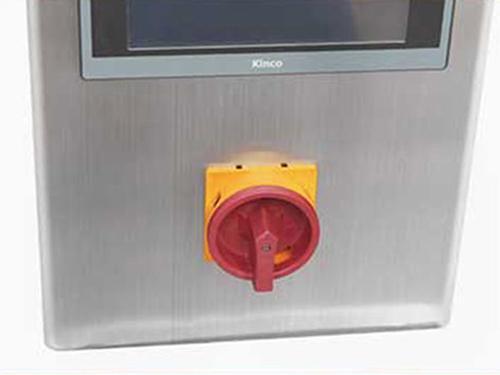

Switch on/off

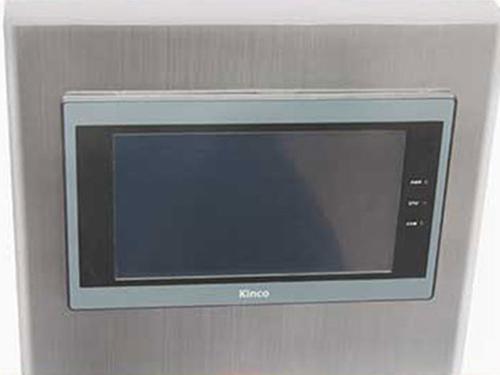

Touchscreen control panel
Available Models
Model
JW-GX80
JW-GX120
JW-GX150
JW-GX200
Model code
GX80-1-1
GX120-1-1
GX150-1-1
GX200-1-1
Detection accuracy
Fe
0.8mm
1.0mm
1.2mm
1.5mm
SUS
1.5mm
2.0mm
2.5mm
3.0mm
Detection speed
free-fall speed
Detection tube open width
Φ80mm
Φ120mm
Φ150mm
Φ200mm
Operator interface
7inch touchscreen
Power supply
220V/50HZ
Machine dimension (L×W×H)
395X305X260mm
430X305X260mm
465X305X260mm
515X305X260mm
Machine weight
44kg
46kg
54kg
65kg
